MF51 Series Glass-sealed Temperature Measurement NTC Thermistor with Transparent Sleeve
| Item No : | MF51 |
| Zero-Power Resistance Value(Ω) @25℃ : |
2-1500 kΩ |
| B Value 25/50 (K) : | 3380, 3435, 3470, 3600, 3950, 4050, 4250 K |
| Temperature Range : | -40~+250 °C |
| Thermal Dissipation Coefficient : |
1.5 mW/ °C |
| Thermal Time Constant : | 5 s |
| Maximum Rated Power : | 35 mW |
| Insulation Resistance : | ≥10 MΩ |
| Withstand Voltage : | 500 V/AC 1min, no breakthrough and flash over |
PRODUCT INTRODUCTION
Product Description

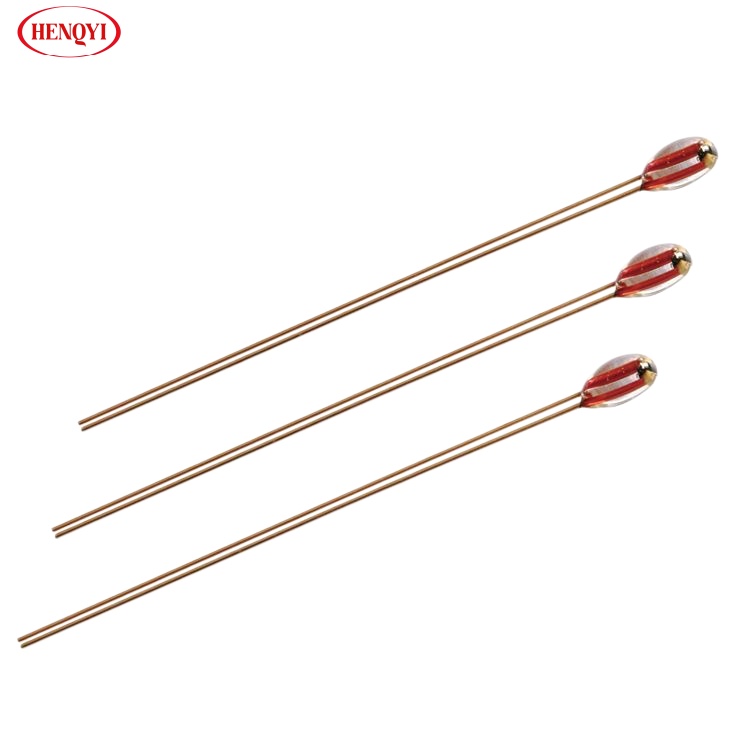

The MF51 series is a thermistor with a glass-encapsulated head. It has small size, high test accuracy and fast response speed.
Product Features
1.Application scope:
- Air conditioning equipment
- Heating equipment.
- Vehicle electronics.
- Electronic thermometer.
- Liquid level sensor.
- Electronic desk calendar.
- Cell phone battery.
2. Features:
- High test accuracy.
- Small size and fast response speed.
- Can work stably for a long time.
- Good interchangeability and consistency.
- Large-scale production, high-cost performance.
3. Installation method:
- a) For use, use general soldering method for installation.
- b) For vibration and impact tests, the leads are fixed, and the fixed point is 6±1 mm away from the resistor body.
Part‑number Naming Convention
MF51
①
Model: Glass-sealed temperature measurement type NTC thermistor
B
②
Overall dimension code: Type B
103
③
Nominal resistance value: 103 is 10KΩ
F
④
Resistance tolerance code: F: ±1%, G: ±2%, H: ±3%, J: ±5%, K: ±10%
3750
⑤
B value 25/85℃: 3750K
E
⑥
B value allowable deviation code E: +0.5%, F: ±1%
