MF51E NTC Thermistor for Robotic Skin Temperature Sensing
| Item No : | MF51E |
| Resistance Value : | 0.2~2000 kΩ |
| Resistance Tolerance : | E:±0.5%, F:±1%, G:±2%, H:±3%, J:±5% |
| B Value 25/50 (K) : | 3270, 3380, 3470, 3600, 3950, 4300, 4500 K |
| Insulation Resistance : | ≥100 MΩ |
| Temperature Range : | -40°C~100 °C |
| Thermal Dissipation Coefficient : |
0.45~0.8 mW/°C |
| Thermal Time Constant : | 0.8~2 s |
| Maximum Rated Power : | ≤3.5 mW |
PRODUCT INTRODUCTION
Product Description
MF51E Series: A miniature sensing core designed specifically for the "electronic skin" of robots, giving the tactile system a keen bionic temperature sense with ultra-fast thermal response.
Product Features
1.Application scope:
- Robotic temperature sensing
2. Features:
- Highly integrated..
- Ultra-fast sensing.
- High interchangeability.
- High reliability.
- Customization supported.

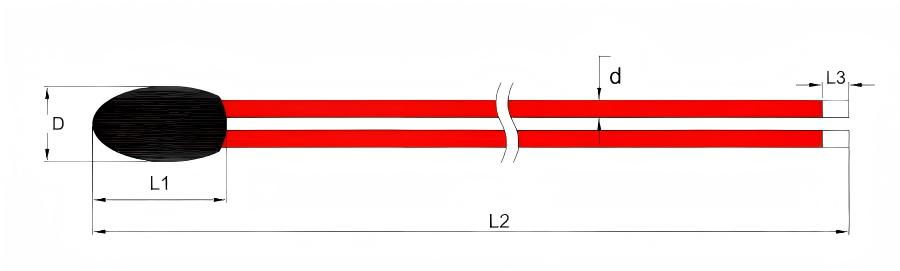

| Items | Stantard Type | Ultra-Fast Type |
|---|---|---|
| D Max(head size) | ≤1.1 mm | ≤0.7 mm |
| d (mm) | 0.17 | 0.10 |
| L1 Max(mm) | 3.5 | 3.5 |
| L2 ±2.0(mm) | 74/87/100 | 50/100 |
| L3(mm) | 2.0~3.5 | 2.0~3.5 |
