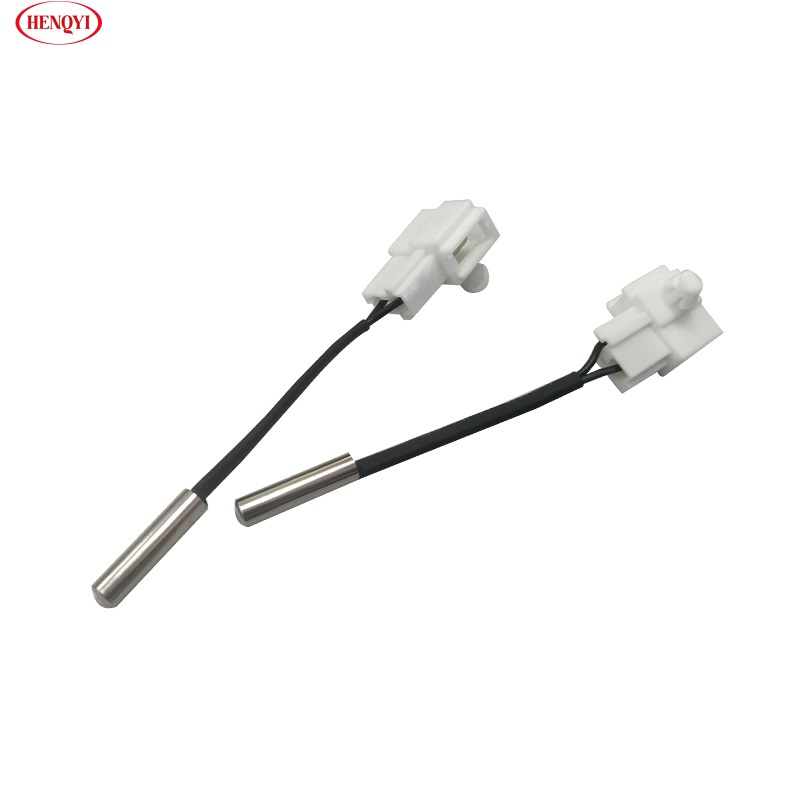

Temperature Sensor For New Vehicle (For car air conditioner)
| Resistance Value R25:KΩ |
B Value | Rated power (mW) |
Dissipation factor (mW/℃) |
Thermal time constant (s) |
|---|---|---|---|---|
| 10 | 3435 | 10‑20 | 2‑4 | ≤3‑6 |
| 10 | 3450 | |||
| 10 | 3470 | |||
| 20 | 3743 | |||
| 50 | 3950 | |||
| 100 | 4520 |
Product Description
HTS series 5K, 10K, 50K, 100KNTC temperature sensors connect high precision and high reliability NTC thermistors with PVC wires. With insulation, heat conduction, waterproof material encapsulated into the desired shape, which easy to install and remote temperature control. Optional B values are 3435, 3470 and 3950, adopted NTC resistance components, waterproof nickel plated copper shell probe and blue D - color sheath line, has the characteristics of stable transmission signal, high precision and high range, the product is a two-core lead, the line length is standard 1 meter, customized line length is also accepted.
Product Features
Features:
- Adopt new technology and stable product performance to work for a long time (annual drift rate of resistance ≤1%)
- High precision, good consistency and interchangeability both resistance and B value(the accuracy can reach ±0.5%)
- High sensitivity and quick reaction
- Adopted double‑layer sealing process with good insulation sealing, anti‑mechanical impact, anti‑bending ability and high reliability
- Can be encapsulated according to the installation conditions used
- Can be made into high dissipation products and the test current can be much higher than traditional sensors to simplifying the test circuit
Applications:
- Automobile air conditioning, refrigerator, freezer, water heater, water dispenser
- Heater, dishwasher, disinfection cabinet, washing machine, dryer and medium‑low temperature drying oven
- Temperature measurement and control of thermostat and other occasions
- Electric water heater, refrigerator, cell phone battery, charger, induction cooker, toaster, disinfection cabinet

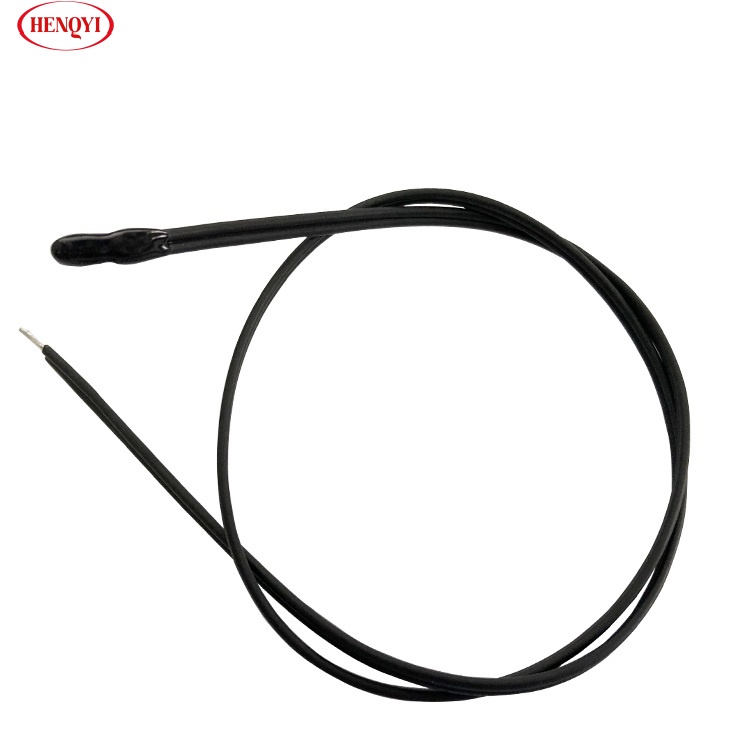

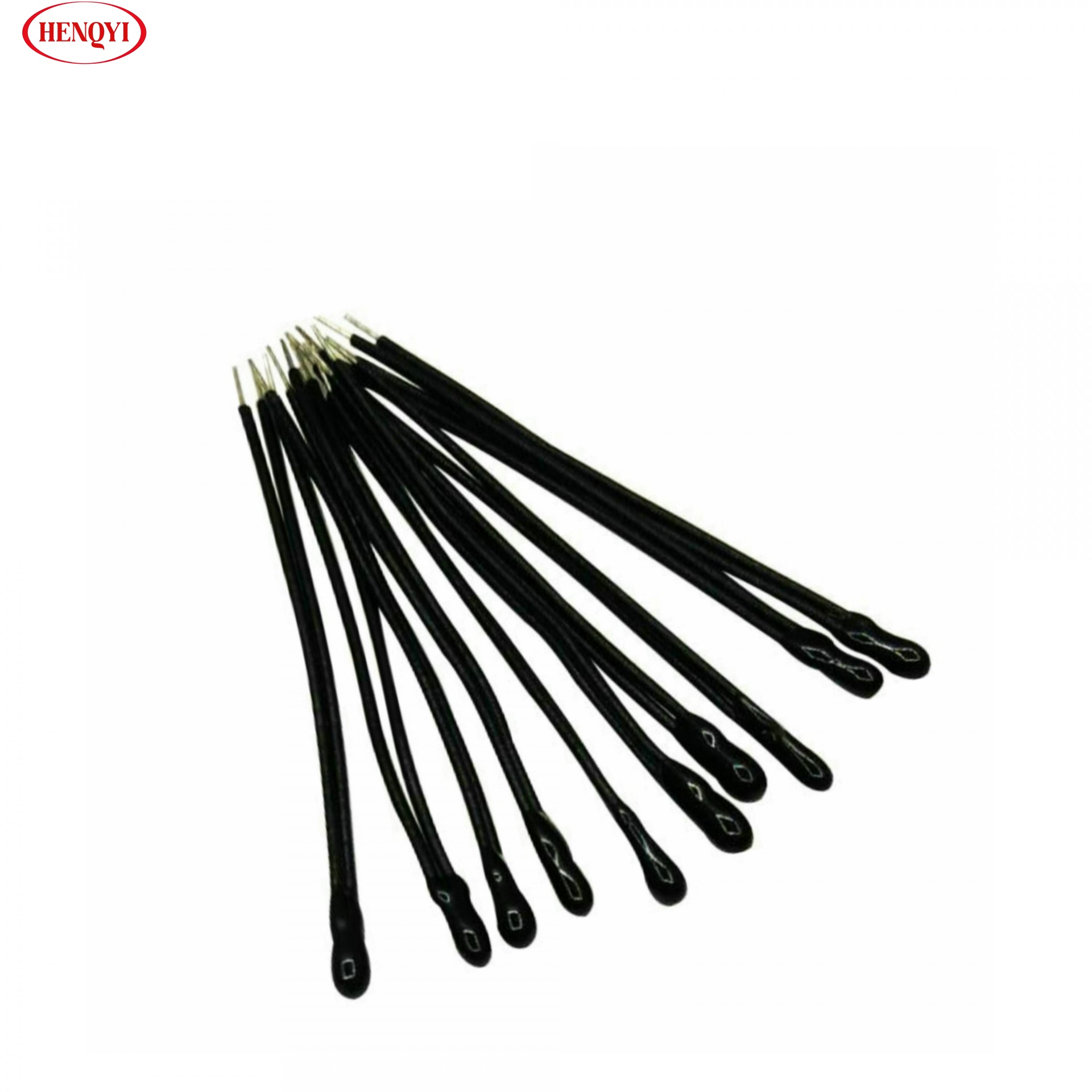

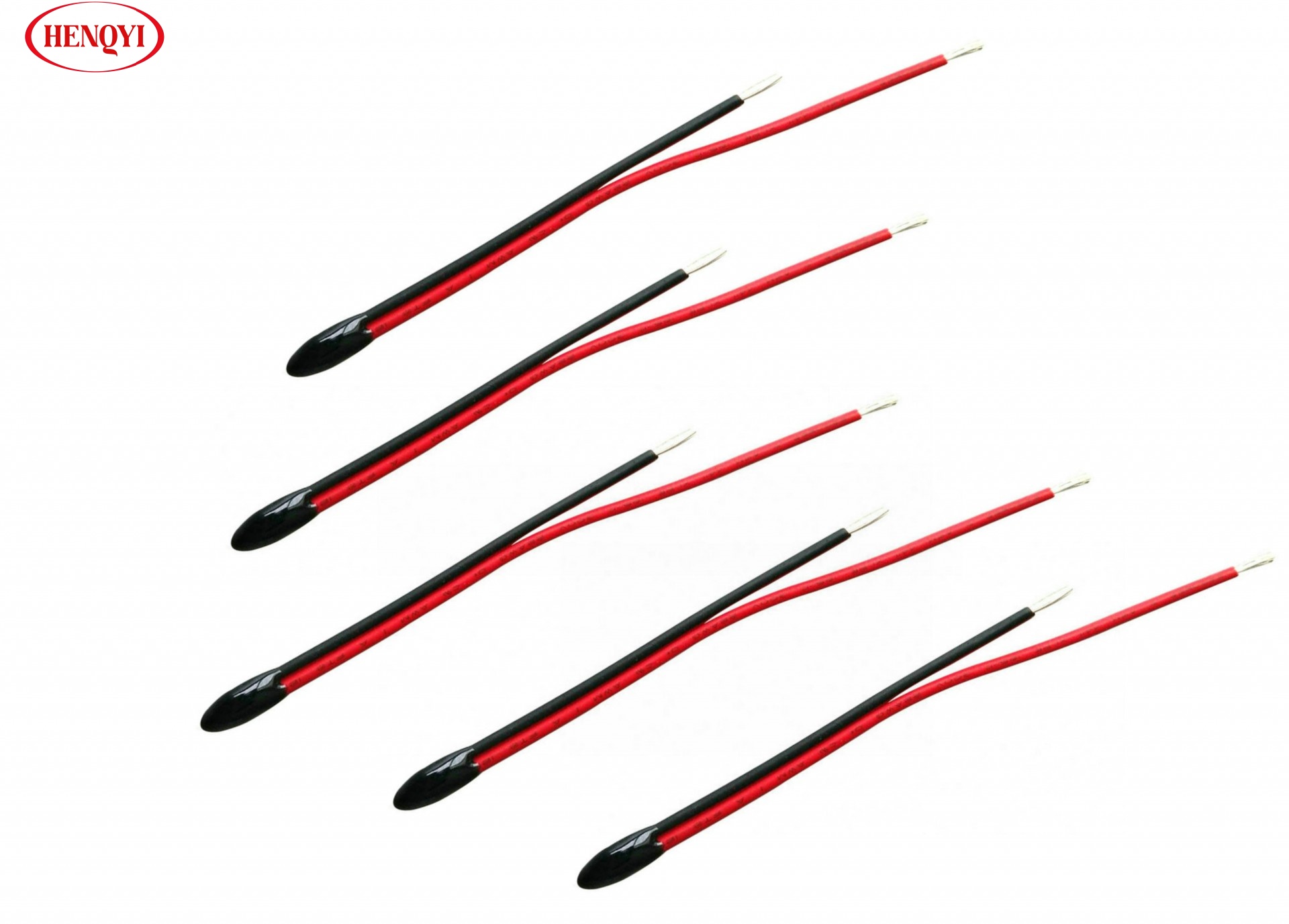

Temperature Sensor For New Vehicle (For motor / electronic control)
| Thermal reaction time : | ≤25 seconds in water bath |
| Dissipation factor : | about 2.6mW/°C in standing air |
| Withstand voltage test : | AC 1800V 2mA 1 second |
| Insulation test : | DC 500V ≥100MΩ |
| Rated power : | ≤10mW |
| Operating temperature range : | 0℃～180℃ |
Product Description
HTS series epoxy-coated TEflon wire NTC thermistor temperature sensor is made by welding a high sensitive and high reliable NTC thermistor chip with the wire. With insulation, heat conduction, waterproof material encapsulated into the desired shape, which easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions and accept customized products.
Product Features
Features:
- Well sealed

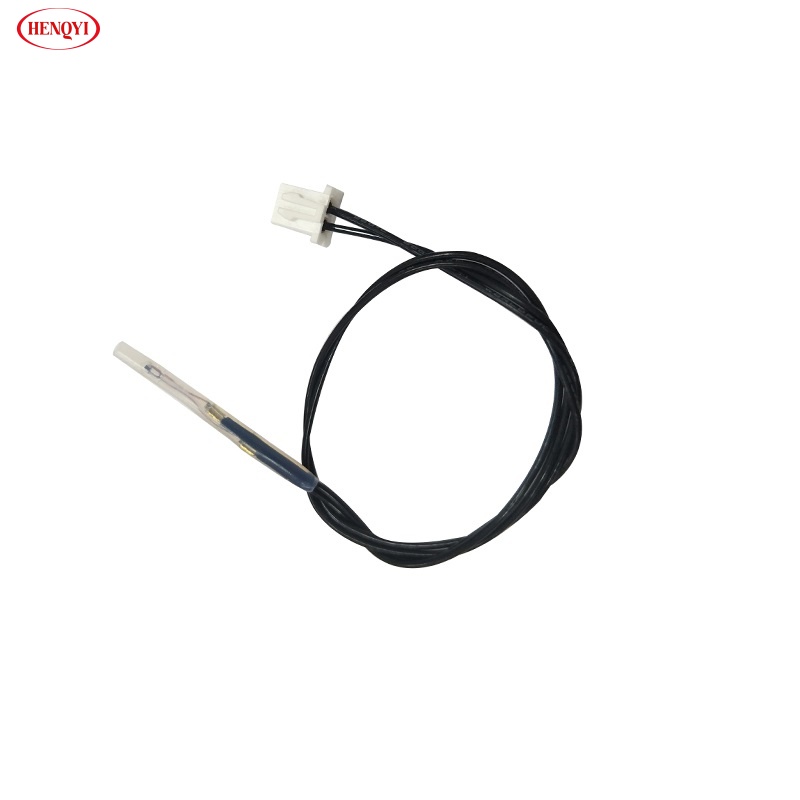

- Teflon tube
- Fast reaction,high sensitivity
- Good heat resisting circulation
- Wire can withstand high temperature
Applications:
- Automobile electrical machinery
- Battery Pack
- Household appliances
- Environment temperature
- Computer temperature measuring
- Diesel engine oil temperature testl

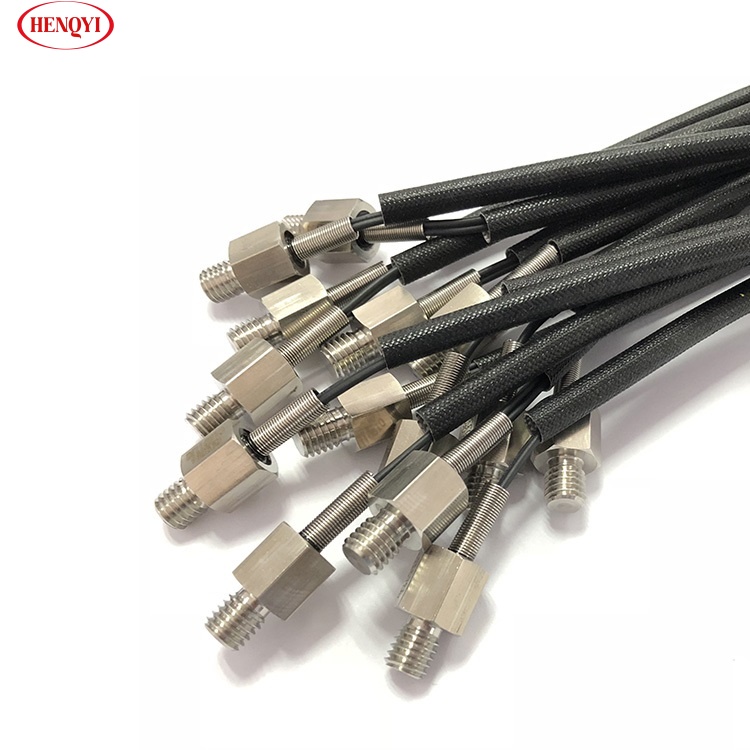

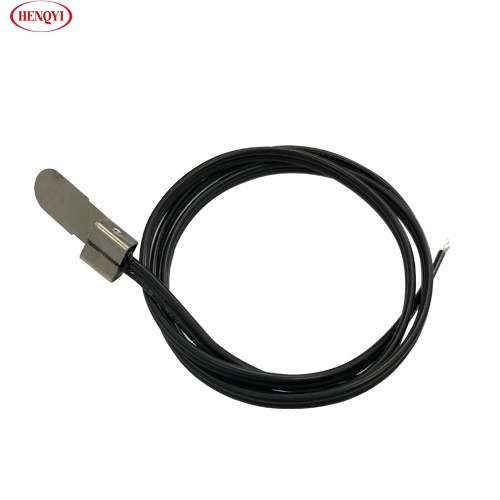

Temperature Sensor For New Vehicle (For Battery pack / BMS system)
| Thermal reaction time : | ≤16 seconds in water bath |
| Dissipation factor : | about 2.6mW/°C in standing air |
| Withstand voltage test : | AC 1800V 2mA 3 seconds |
| Insulation test : | ≥100MΩ |
| Rated power : | ≤10mW |
| Operating temperature range : | -20℃ ~ 105℃ |
Product Description
HTS series OT terminal NTC thermistor temperature sensor is made by welding a high sensitive and high reliable NTC thermistor chip with the wire. With insulation, heat conduction, waterproof material encapsulated into the desired shape, which easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions and accept customized products.
Product Features
Features:
- High accuracy, good consistency and interchangeable both resistance value and B value
- Good insulation, high reliability, quick response
- Adopted double‑layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability
- Can work stably for a long time (annual resistance drift rate ≤1‰)
- Can be encapsulated according to the installation conditions used
Applications:
- Air conditioning equipment, heating equipment, medical instruments, temperature control instrument electronic gifts, electronic temperature and hygrometer automobile temperature measurement, household appliances, computers
- Electronic calendar, rechargeable battery pack, wireless charger, notebook battery, LED shower
- Power supply, adapter, LED power supply, LED driver
- Beauty products, digital instruments, lithium batteries, switches, fans, desktop computer exhaust fans, alarms

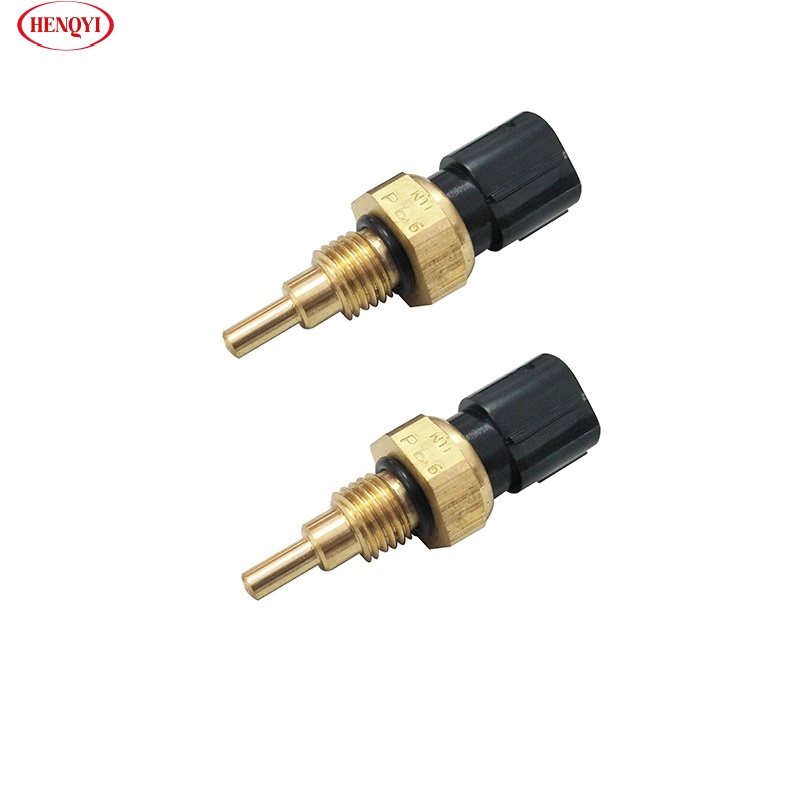

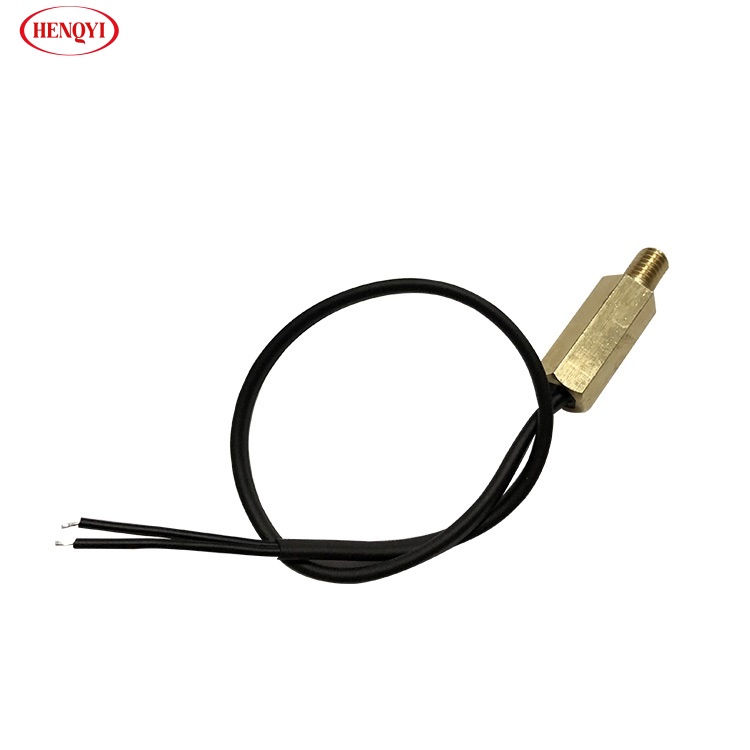

Temperature Sensor For New Vehicle (For Motorcycle / auto oil temperature)
| Thermal reaction time : | ≤16 seconds in water bath |
| Dissipation factor : | about 2.6mW/°C in standing air |
| Withstand voltage test : | AC 1800V 2mA 1 second |
| Insulation test : | AC 1800V≥100MΩ |
| Rated power : | ≤10mW |
| Operating temperature range : | -40℃～150℃ |
Product Description
HTS series brass shell NTC thermistor temperature sensor is made by welding a high sensitive and high reliable NTC thermistor chip with the wire. With insulation, heat conduction, waterproof material encapsulated into the desired shape, which easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions and accept customized products.
Product Features
Features:
- Wide resistance range:1KΩ~500KΩ
- High‑thermal conductivity
- Good insulation, high reliability and stable performance
- Accept customized
- Can work stably for a long time (annual resistance drift rate ≤1%)
- Can be encapsulated according to the installation conditions used
Applications:
- automobile water and oil temperature
- Household applicances,rice cooker, heater, soybean milk machine, coffee machine
- Combustion machine, dishwasher, disinfecting machine, washing machine
- Automobile temperature control system, medical equipment, communication equipment
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=100KΩ±0.5% B(25/50)=3435K±0.5% |
| 2 | Casing | 27×M5×0.8×S8 brass |
| 3 | Casing | φ3 black shrinkable tube |
| 4 | lead wire | Black UL4413#26AWG |
Ordering Instructions:
Please inform the following parameters when ordering NTC temperature sensor:
- Resistance value requirements (can be selected according to the above table)
- B value requirements (can be selected according to the above table)
- Working environment (whether waterproof, moisture‑proof, cold and other requirements )
- Application: different usage has different temperature resistant wire and different resistance value
- Operating temperature range
- Accuracy requirement (1%‑5% optional)
- Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
- Customized shell dimensions is welcome
- Customized wire rod and length is welcome
- If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confirm before ordering. Customized parameters and dimensions is welcome.

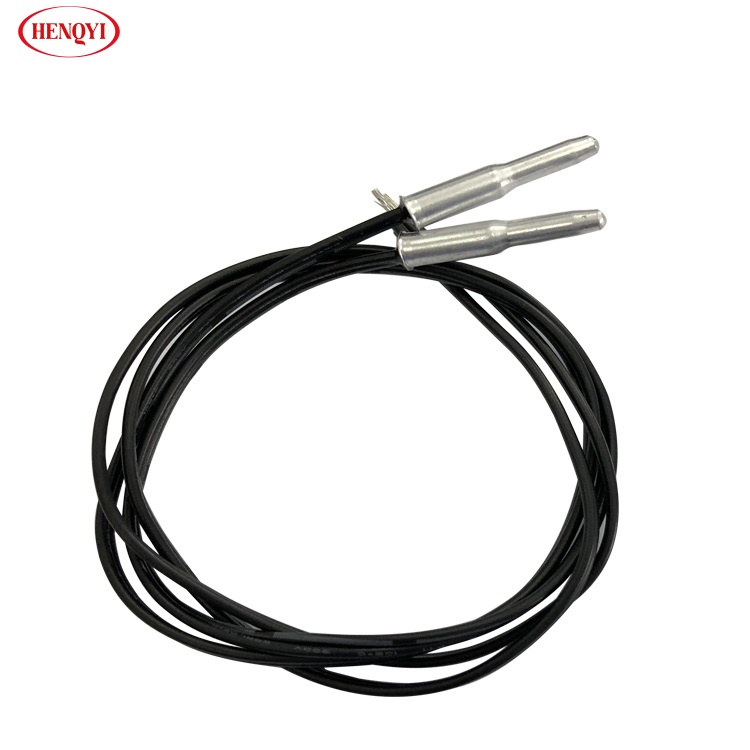

For automotive air conditioning

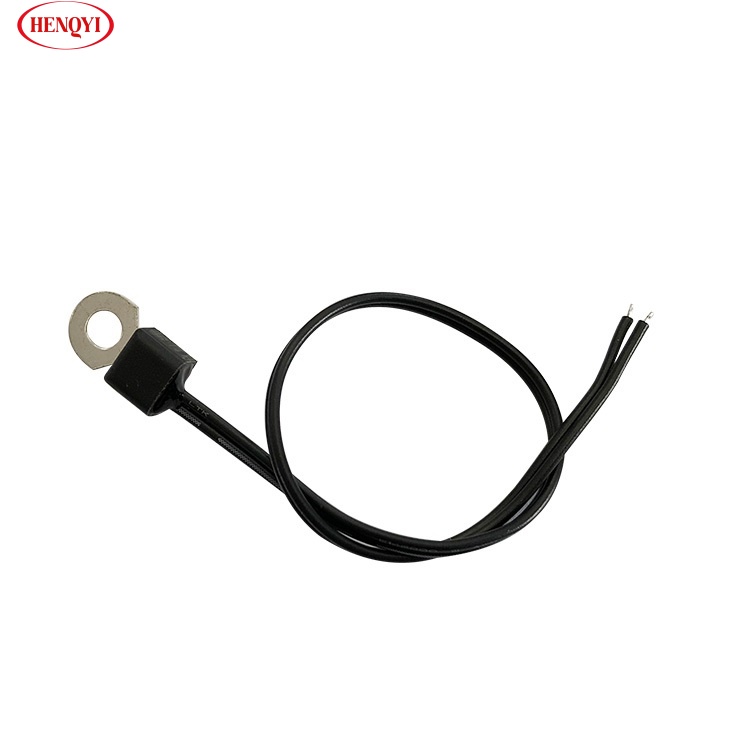

For automobile battery pack

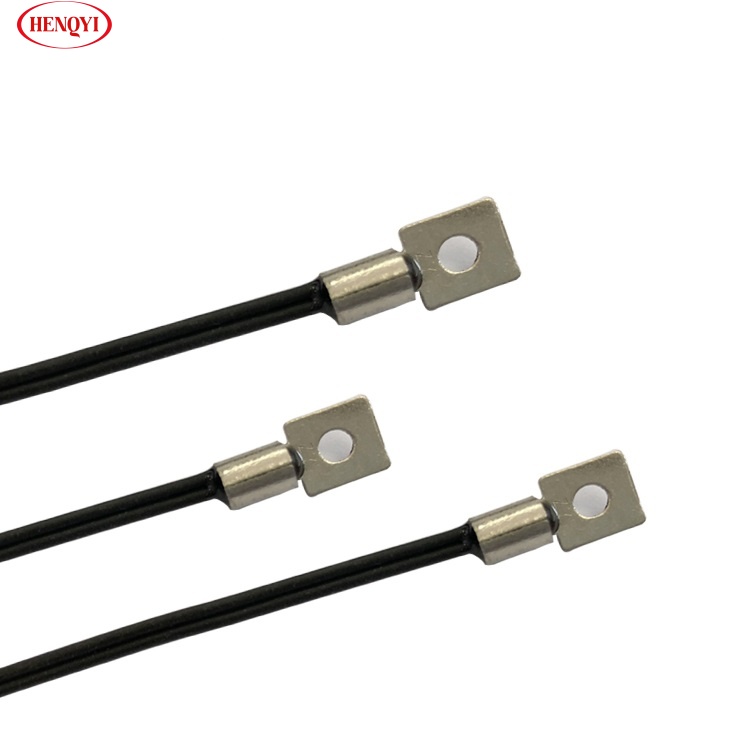

For automobile BMS battery system

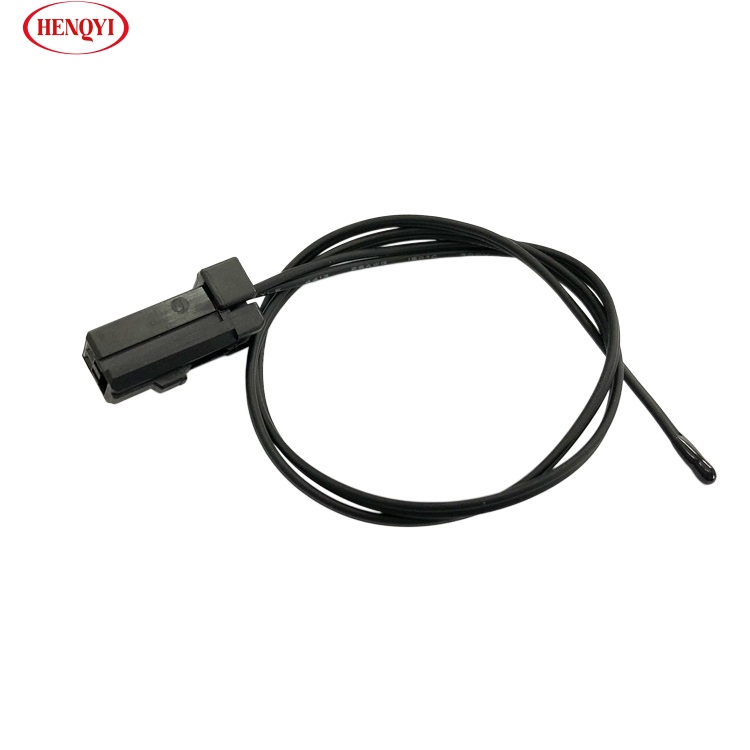

BMS battery system

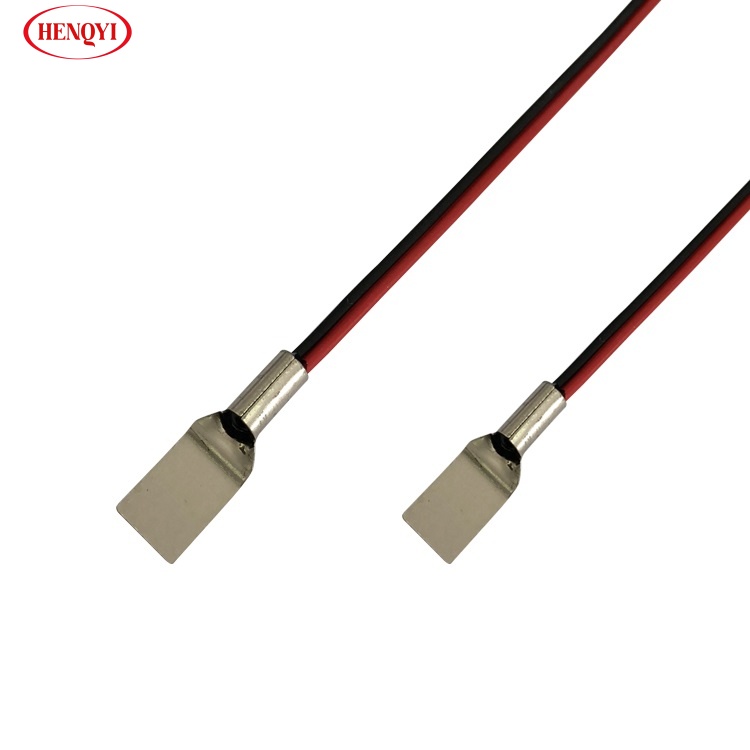

For battery pack
For vehicles BMS battery
For vehicle battery pack
For battery pack

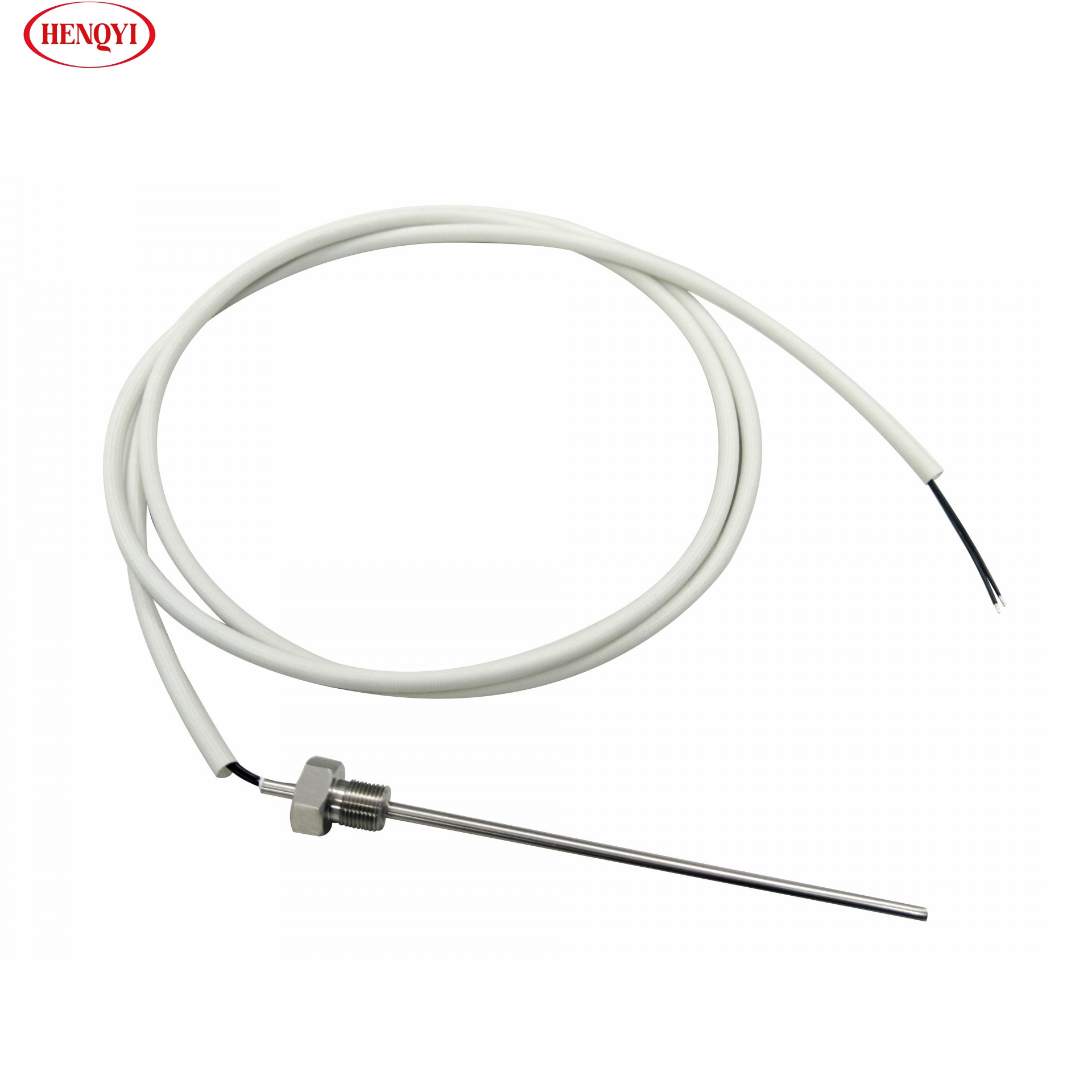

For automobile engine
For diesel engine oil
For oil temperature

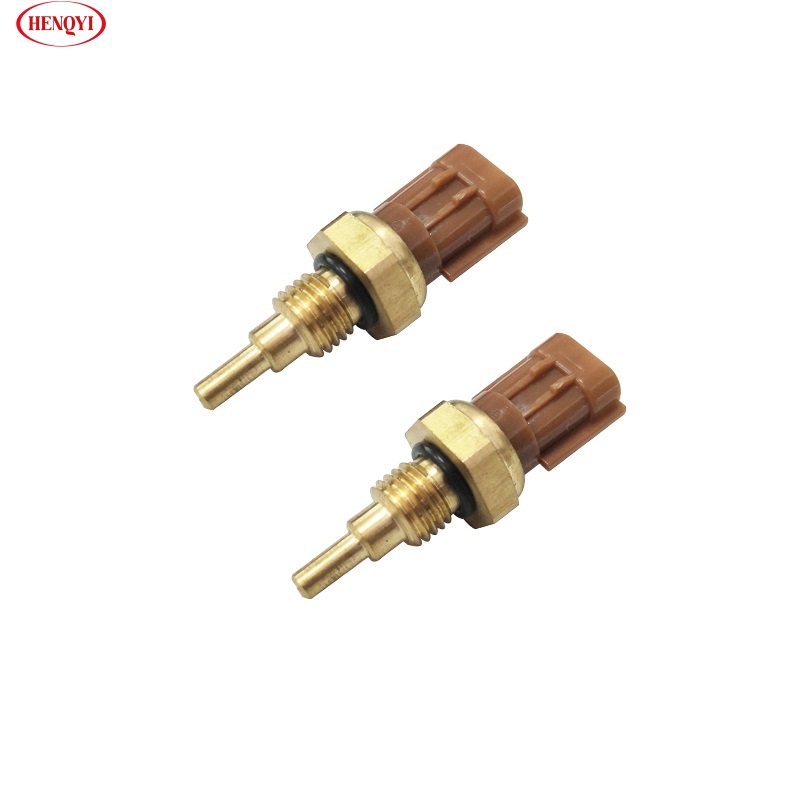

For automobile oil temperature
RT table of conventional resistance values
| R T | 2.252KΩ EQ B25/50:3936A B25/85:3950B |
5KΩ IM B25/50:3270A B25/85:3418B |
5KΩ IM B25/50:3950A B25/85:3981B |
10KΩ IQ B25/50:3383A B25/85:3435B |
10KΩ EQ B25/50:3913A B25/85:3977B |
10KΩ EQ B25/50:3950A B25/85:4017B |
50KΩ EQ B25/50:3950A B25/85:4050B |
100KΩ GI B25/50:3950A B25/85:3997B |
100KΩ GI B25/50:4100AI B25/85:4149BI |
|---|---|---|---|---|---|---|---|---|---|
| -40 | 76.757 | 89.527 | 166.488 | 205.516 | 284.362 | 299.347 | 1668.539 | 3263.032 | 3724.780 |
| -35 | 55.198 | 67.552 | 120.216 | 154.902 | 207.765 | 218.546 | 1208.617 | 2365.035 | 2666.911 |
| -30 | 40.169 | 51.596 | 87.803 | 117.957 | 153.558 | 161.297 | 884.941 | 1733.109 | 1931.390 |
| -25 | 29.562 | 39.864 | 64.823 | 90.693 | 114.728 | 120.266 | 654.531 | 1283.211 | 1413.792 |
| -20 | 21.985 | 31.133 | 48.343 | 70.366 | 86.594 | 90.537 | 488.738 | 959.375 | 1045.392 |
| -15 | 16.504 | 24.894 | 36.348 | 54.994 | 66.328 | 69.111 | 367.390 | 723.658 | 780.142 |
| -10 | 12.508 | 20.020 | 27.587 | 43.343 | 51.191 | 53.134 | 278.692 | 550.628 | 587.479 |
| -5 | 9.565 | 16.189 | 21.123 | 34.433 | 39.793 | 41.128 | 213.231 | 422.427 | 446.184 |
| 0 | 7.377 | 13.159 | 16.310 | 27.561 | 31.143 | 32.038 | 164.474 | 326.601 | 341.615 |
| 5 | 5.730 | 10.724 | 12.688 | 22.220 | 24.537 | 25.056 | 127.638 | 253.987 | 263.138 |
| 10 | 4.487 | 8.791 | 9.947 | 18.034 | 19.446 | 19.729 | 99.859 | 199.056 | 204.329 |
| 15 | 3.540 | 7.246 | 7.855 | 14.729 | 15.498 | 15.636 | 78.728 | 157.158 | 159.879 |
| 20 | 2.814 | 6.004 | 6.247 | 12.102 | 12.418 | 12.468 | 62.524 | 124.948 | 126.009 |
| 25 | 2.252 | 5.000 | 5.000 | 10.000 | 10.000 | 10.000 | 50.000 | 100.000 | 100.000 |
| 30 | 1.814 | 4.183 | 4.027 | 8.308 | 8.092 | 8.065 | 40.249 | 80.540 | 79.880 |
| 35 | 1.471 | 3.516 | 3.263 | 6.938 | 6.577 | 6.539 | 32.603 | 65.256 | 64.207 |
| 40 | 1.199 | 2.968 | 2.659 | 5.822 | 5.370 | 5.328 | 26.568 | 53.176 | 51.916 |
| 45 | 0.984 | 2.515 | 2.179 | 4.909 | 4.402 | 4.363 | 21.773 | 43.568 | 42.215 |
| 50 | 0.811 | 2.140 | 1.794 | 4.157 | 3.623 | 3.588 | 17.941 | 35.882 | 34.512 |
| 55 | 0.673 | 1.822 | 1.487 | 3.537 | 3.004 | 2.969 | 14.827 | 29.724 | 28.386 |
| 60 | 0.562 | 1.555 | 1.239 | 3.021 | 2.502 | 2.469 | 12.306 | 24.746 | 23.468 |
| 65 | 0.471 | 1.331 | 1.037 | 2.591 | 2.093 | 2.062 | 10.256 | 20.700 | 19.498 |
| 70 | 0.397 | 1.141 | 0.873 | 2.231 | 1.759 | 1.729 | 8.581 | 17.395 | 16.277 |
| 75 | 0.336 | 0.981 | 0.738 | 1.928 | 1.484 | 1.456 | 7.206 | 14.681 | 13.649 |
| 80 | 0.286 | 0.845 | 0.626 | 1.671 | 1.257 | 1.231 | 6.074 | 12.442 | 11.496 |
| 85 | 0.245 | 0.733 | 0.534 | 1.451 | 1.070 | 1.047 | 5.139 | 10.582 | 9.716 |
| 90 | 0.210 | 0.637 | 0.457 | 1.264 | 0.915 | 0.893 | 4.362 | 9.033 | 8.245 |
| 95 | 0.181 | 0.555 | 0.393 | 1.104 | 0.785 | 0.765 | 3.715 | 7.739 | 7.022 |
| 100 | 0.157 | 0.484 | 0.339 | 0.967 | 0.676 | 0.658 | 3.174 | 6.653 | 6.002 |
| 105 | 0.136 | 0.424 | 0.294 | 0.849 | 0.584 | 0.568 | 2.720 | 5.738 | 5.148 |
| 110 | 0.119 | 0.372 | 0.255 | 0.747 | 0.507 | 0.491 | 2.337 | 4.965 | 4.430 |
| 115 | 0.104 | 0.327 | 0.223 | 0.659 | 0.441 | 0.427 | 2.014 | 4.310 | 3.825 |
| 120 | 0.091 | 0.288 | 0.195 | 0.583 | 0.384 | 0.372 | 1.740 | 3.752 | 3.312 |
| 125 | 0.080 | 0.254 | 0.171 | 0.517 | 0.336 | 0.325 | 1.507 | 3.275 | 2.877 |
| 130 | 0.071 | 0.225 | 0.151 | 0.459 | 0.295 | 0.284 | 1.308 | 2.867 | 2.506 |
| 135 | 0.063 | 0.199 | 0.133 | 0.409 | 0.260 | 0.250 | 1.138 | 2.517 | 2.188 |
| 140 | 0.056 | 0.176 | 0.118 | 0.365 | 0.229 | 0.220 | 0.993 | 2.215 | 1.916 |
| 145 | 0.050 | 0.157 | 0.104 | 0.326 | 0.202 | 0.194 | 0.868 | 1.953 | 1.682 |
| 150 | 0.044 | 0.140 | 0.093 | 0.292 | 0.179 | 0.172 | 0.760 | 1.727 | 1.480 |
