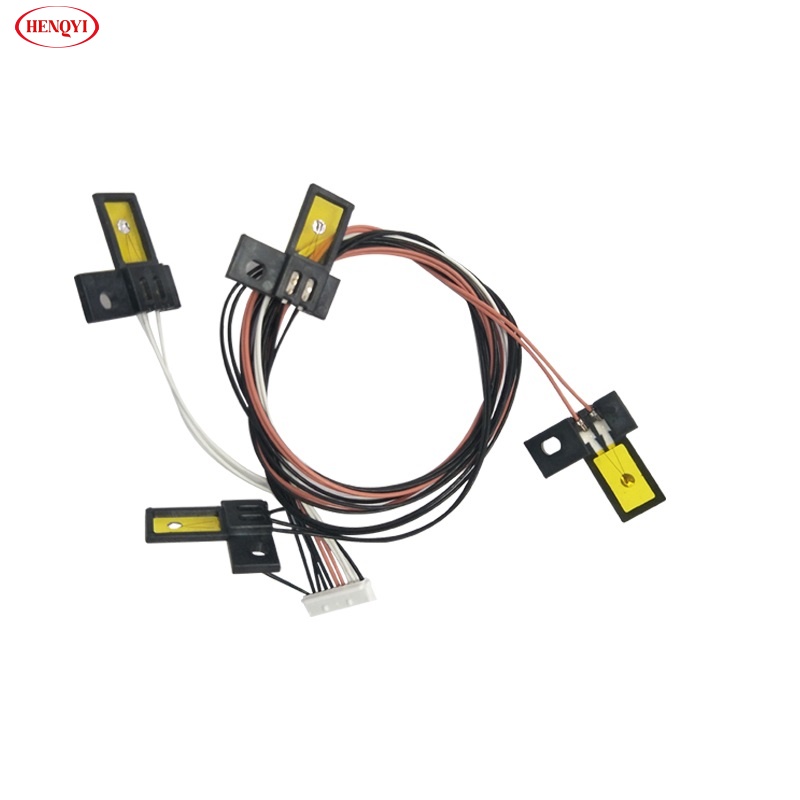

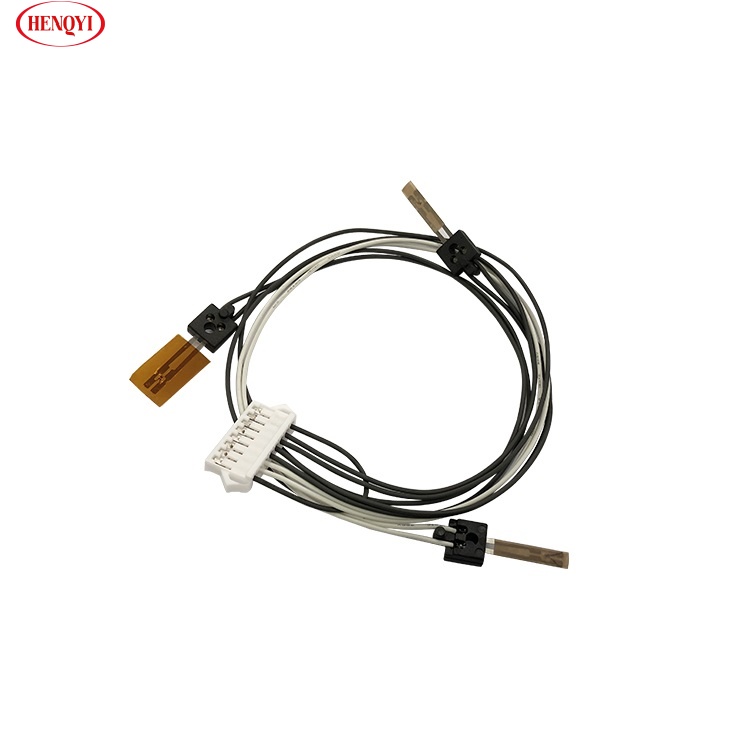

Temperature Sensor For Office Automation (Laser printer roller shaft)
| 1.Reaction time: | ≤10S |
| 2.Dissipation factor: | about 0.3mW/°C |
| 3.Operating temperature range: | 0℃ ~ 230℃ (heat‑sensitive part) |
| 4. | Sheet steel welding resistance in wire back,flat head down,polyimide film plane,round face with teflon film |
PRODUCT INTRODUCTION
Product Description
three kinds of resistance NTC temperature sensors is used for temperature monitoring of office automation equipment (laser printer, duplicator roller shaft) with characteristic of fast reaction,high precision, high reliability and high temperature resistance
Product Features
Features:
- Light contact, long life
- Quick response and wear resistance
- Low contact pressure
- Can reduce the damage of roller
- Office facsimile equipment
Applications:
- Roller shaft for printer and copier
- Color multifunctional models
- Compound machine
- Mulch applicator

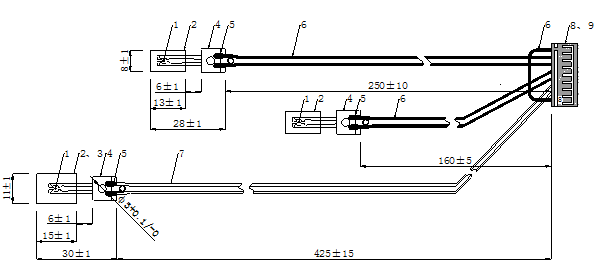

| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R180=6.5KΩ±5% B(25/85)=3130K±3% |
| 2 | Teflon film | ashen |
| 3 | Polyimide film | tawny |
| 4 | Lead wire | NUL#26AWG black dark grey |
| 5 | Lead wire | NUL#26AWG white |
| 6 | Connector | PHNR‑08C‑H grey |

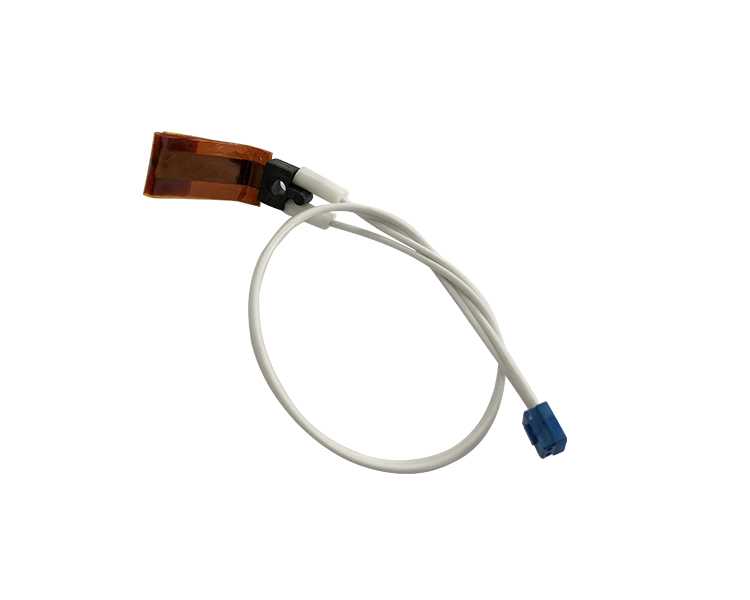

Temperature Sensor For high precision high temperature resistance copier & printer
| 1.Reaction time: | ≤10S |
| 2.Dissipation factor: | about 0.3mW/°C |
| 3.Operating temperature range: | 0℃ ~ 230℃ (heat‑sensitive part) |
| 4.Withstand voltage test: | AC1000V |
| 5.Insulation resistance: | DC500V 100MΩ above |
PRODUCT INTRODUCTION
Product Description
Product Features
Features:
- Quick reaction, wear resistance, low contact pressure,reduce the damage of the roller
- Light contact type can increase the service life
- It is made of high temperature resistant glass
- Suitable for measuring the surface temperature of the heating sheet
Applications:
- copier, printer
- Temperature monitoring of fixing roller of compound machine
- photocopier
- Color function printing machine

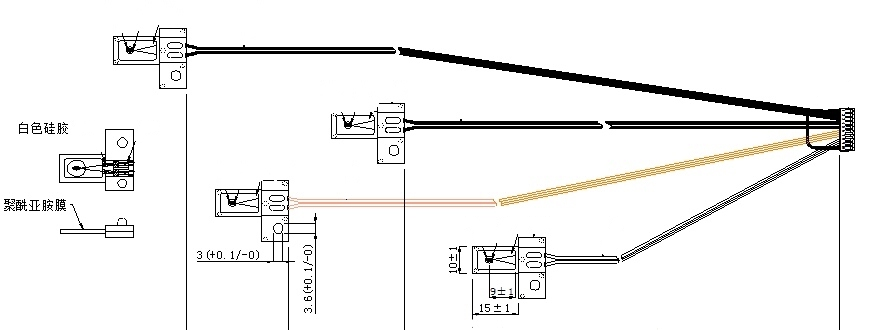

| No. | Material | Material Specification |
|---|---|---|
| 1 | Casing | polyimide tawny |
| 2 | SS shett | 8.6*4.5*T0.1 |
| 3 | Resistance Value | R200=0.55KΩ±5% B(100/200)=4300K±3% |
| 4 | Polyimide | tawny |
| 5 | Lead wire | UL1332#22AWG white |
| 6 | Connector | 6‑179228‑2 black |
Ordering Instructions:
Please inform the following parameters when ordering NTC temperature sensor:
- Resistance value requirements (can be selected according to the above table)
- B value requirements (can be selected according to the above table)
- Working environment (whether waterproof, moisture‑proof, cold and other requirements )
- Application: different usage has different temperature resistant wire and different resistance value
- Operating temperature range
- Accuracy requirement (1%‑5% optional)
- Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
- Customized shell dimensions is welcome
- Customized wire rod and length is welcome
- If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confirm before ordering. Customized parameters and dimensions is welcome.

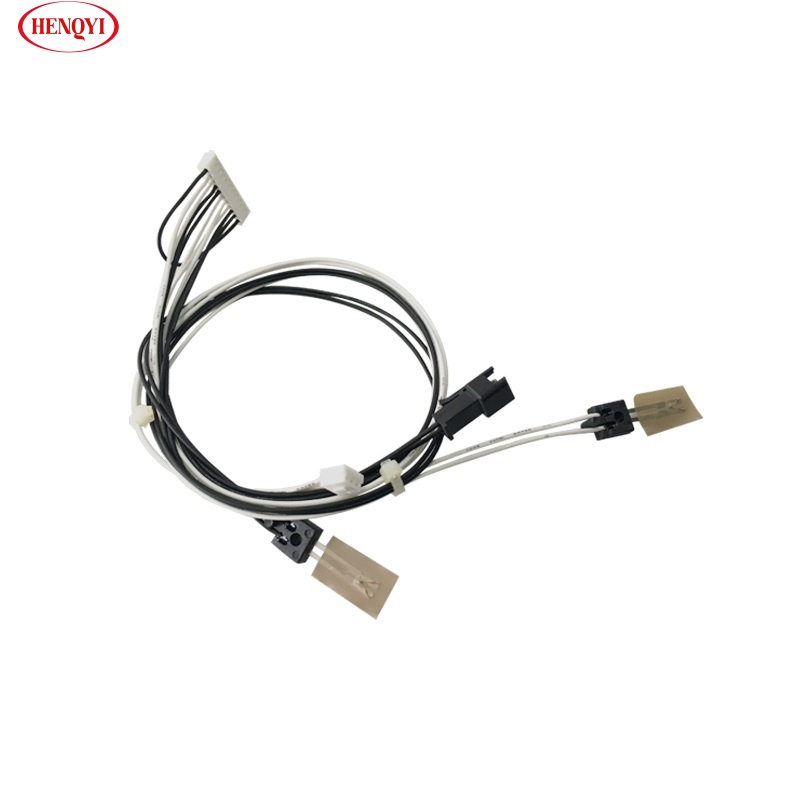

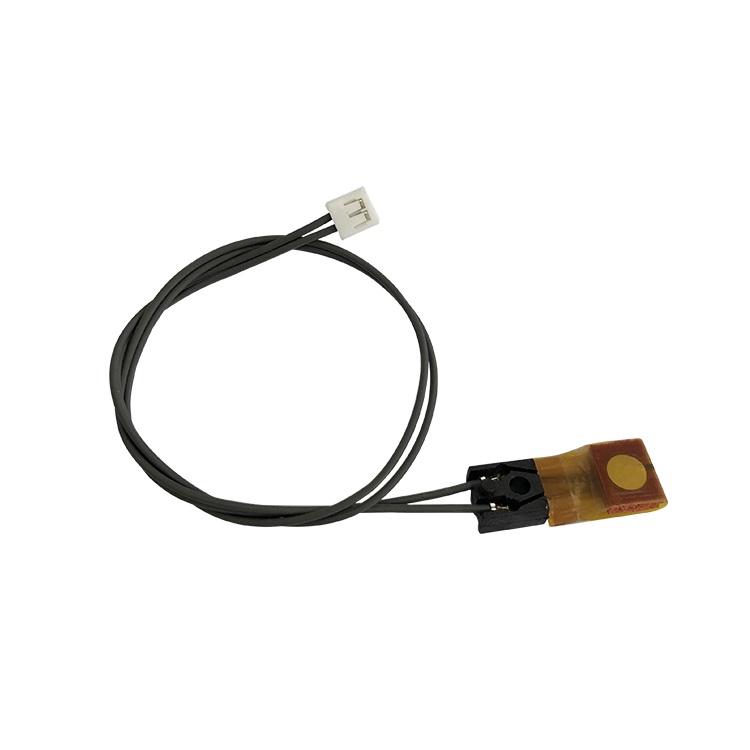

similar samples

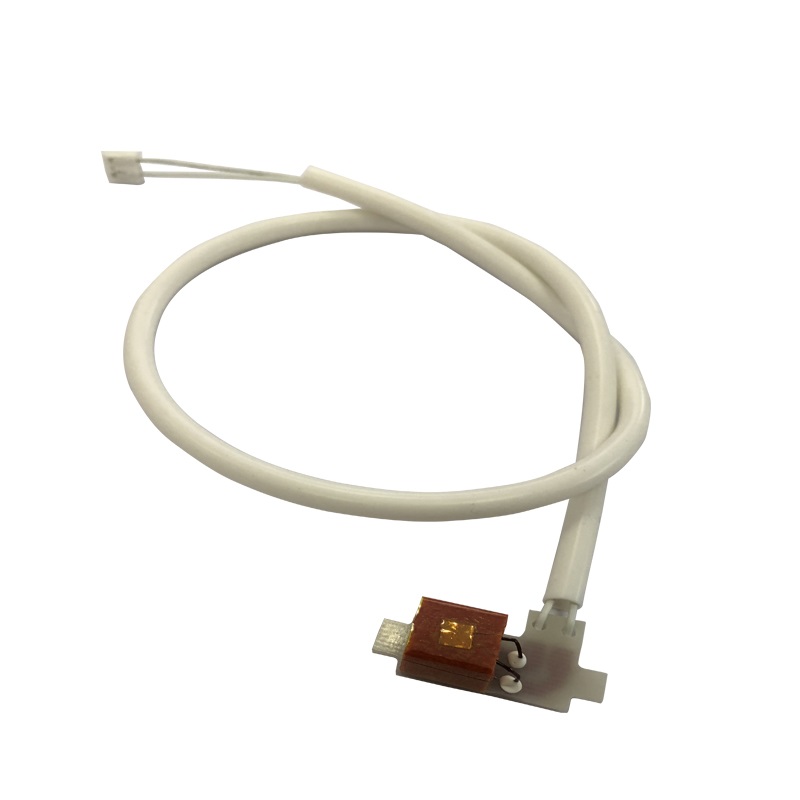

For light contact photocopier

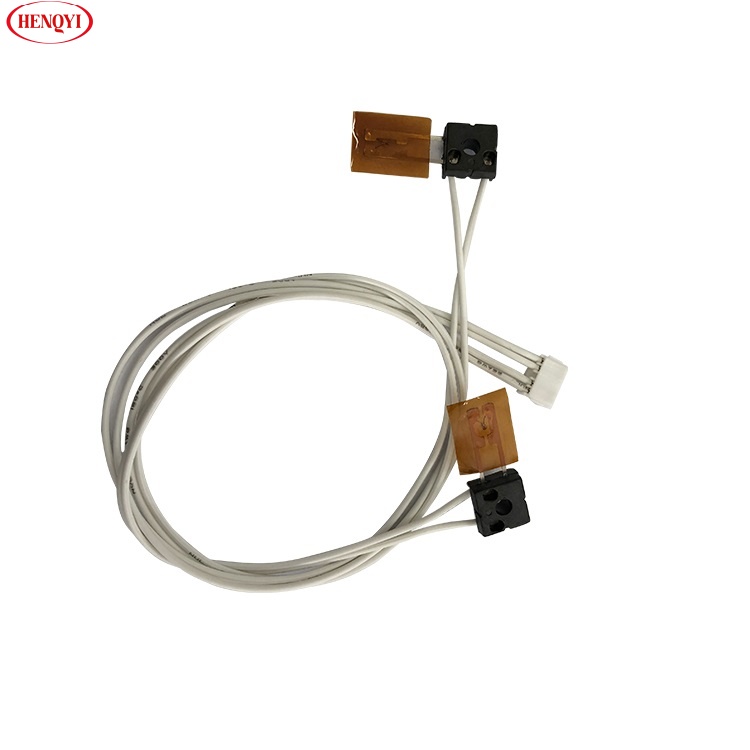

For laser printer copier roller

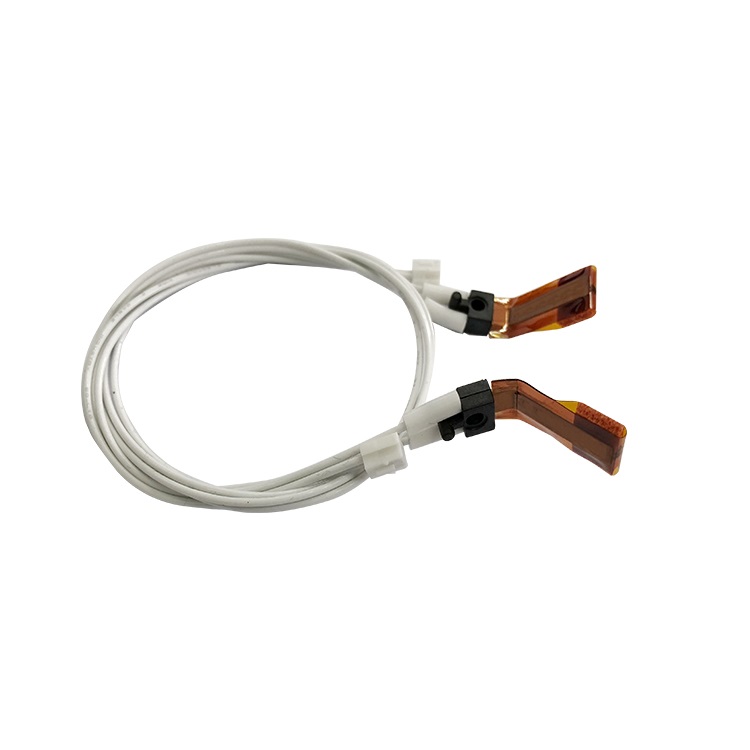

For office automation

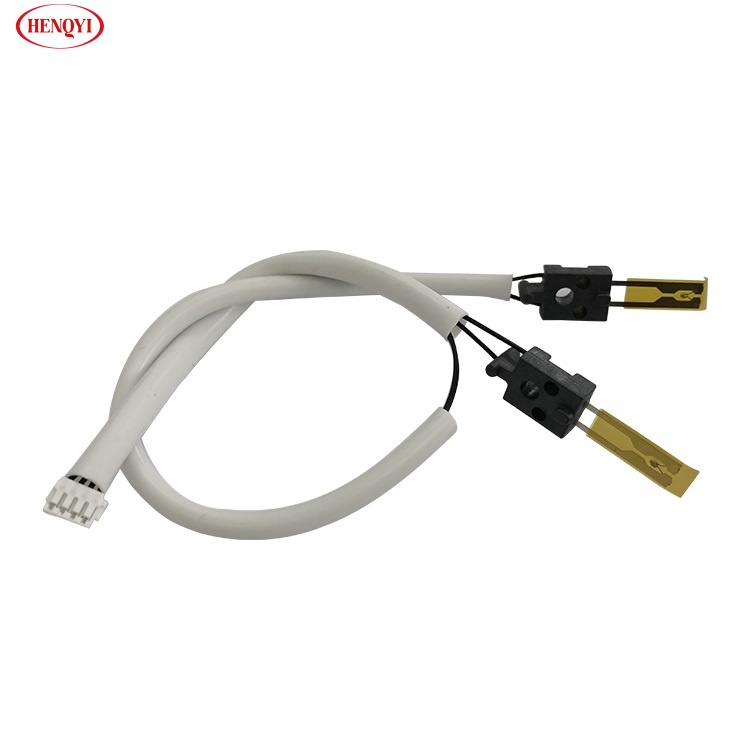

laser printer

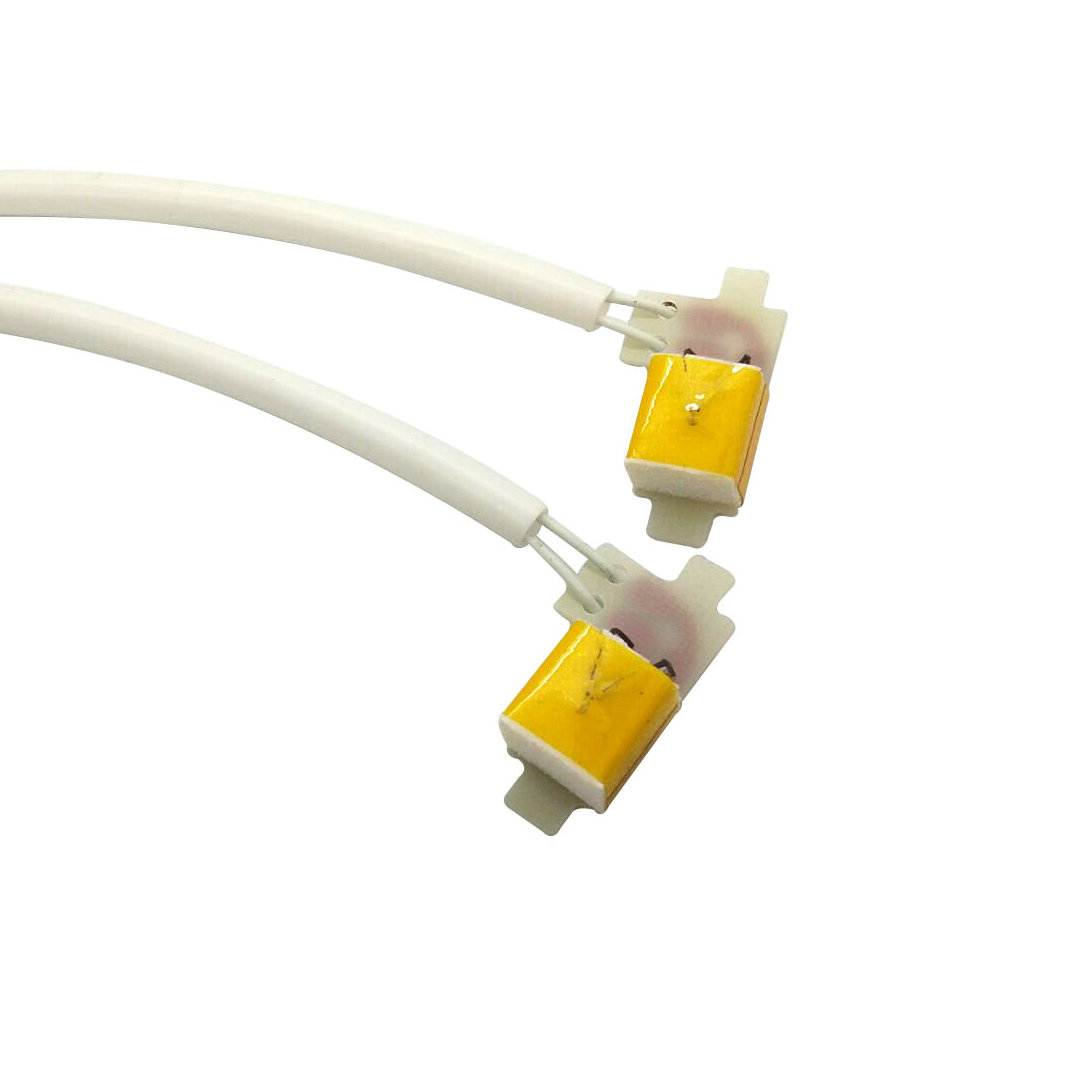

For office automation

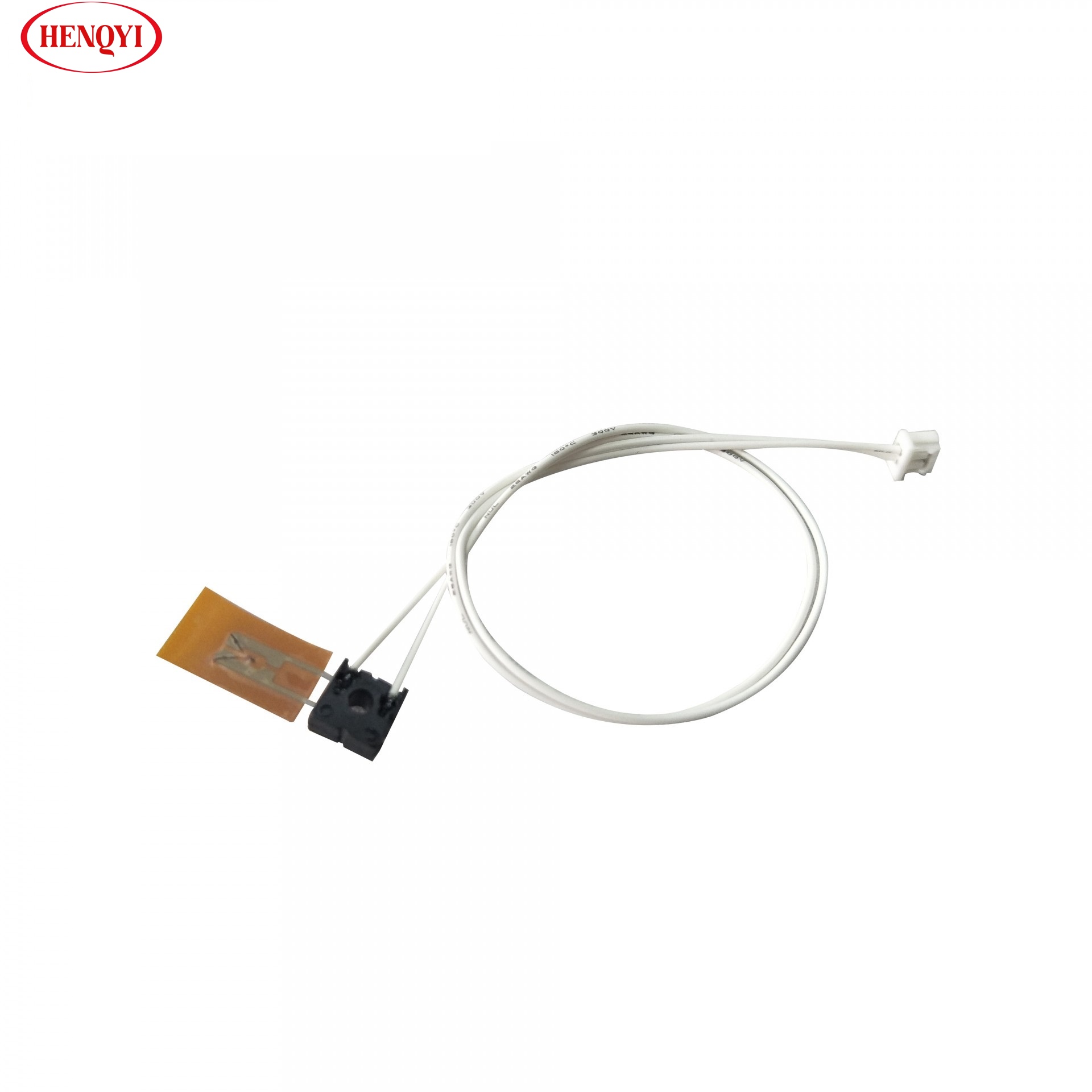

office automation equipment

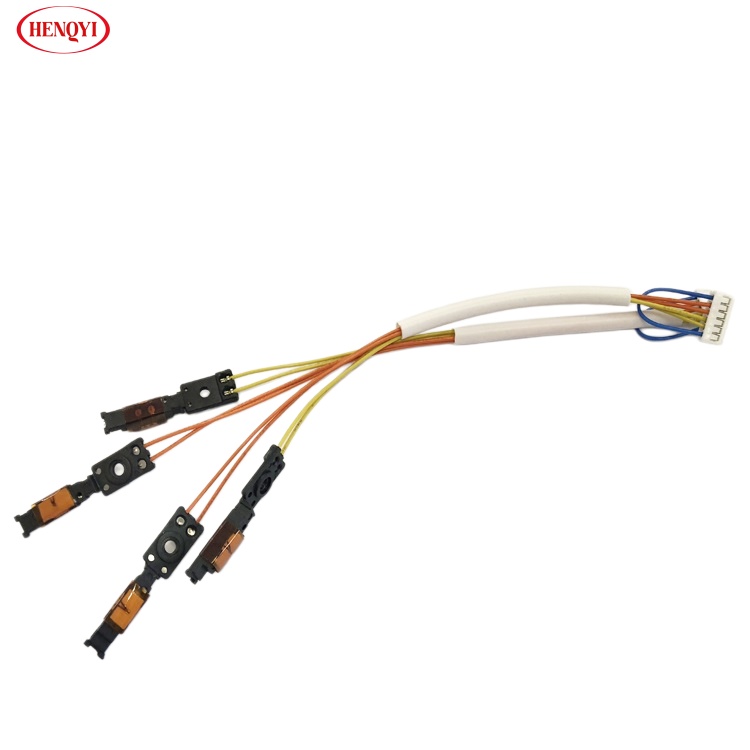

For office automation equipment
printer roller temperature monitoring
NTC thermistor for printer
Thermistor temperature sensor for copier
