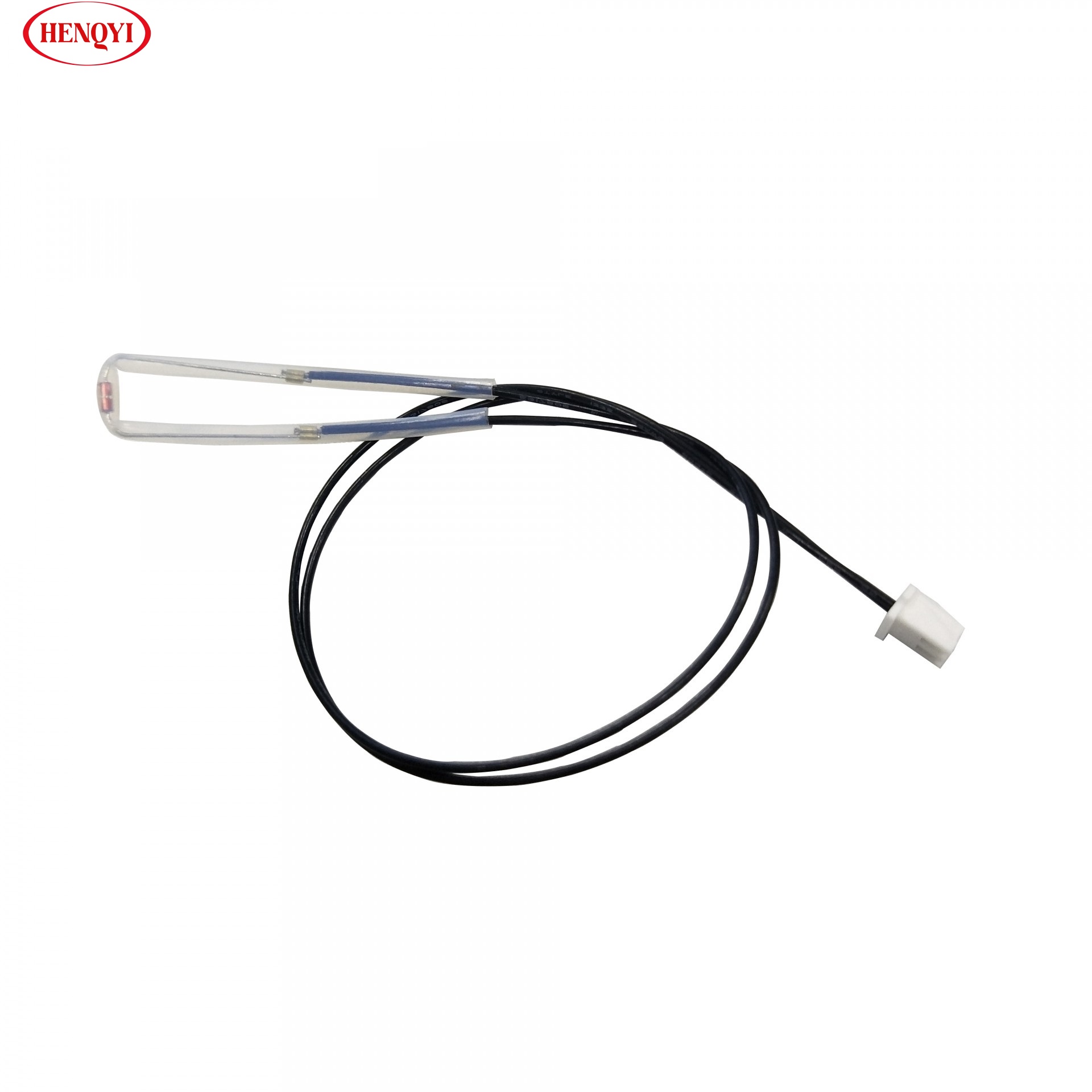

Specialized temperature sensor for steam furnace
| Thermal reaction time | ≤10 seconds in water bath |
| Dissipation factor | about 2.6mW/℃ in standing air |
| Withstand voltage test | AC 1300V 2mA 1 second, no flashover, breakdown and other abnormal phenomena in the steel ball |
| Insulation test | DC 500V ≥100MΩ |
| Rated power | ≤10mW |
| Operating temperature range | -40℃～180℃ |
Product Description
HTS series Teflon tube temperature sensor is made by welding high sensitive and reliable NTC sensitive resistor chip with black PVC wire. With insulation，heat conduction, waterproof material encapsulated into the desired shape, which is easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions,customized dimensions is welcome.
Product Features
Features:
- Teflon tube
- Wide range of resistance values:1KΩ~500KΩ
- High accuracy, good consistency and interchangeable resistance value and B value
- Good insulation, high reliability, quick response
Applications:
- Steam boiler, hot water boiler
- Home appliances, rice cookers, heaters, automobile
- Electric automobile, soybean milk machine, coffee maker
- Burning machine, dishwasher, sterilizer, washing machine
- Automotive temperature control system, medical equipment, new temperature measurement, communication equipment
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=50KΩ±1%, B(25/50)=3950K±1% |
| 2 | Casing | 30L Teflon tube |
| 3 | Casing | φ1.0 PVDF heat shrinkable tubes transparent |
| 4 | Casing | φ2.4 PVDF heat shrinkable tubes |
| 5 | Lead wire | UL1332 #26AWG black |
| 6 | Connector | red |
Specialized temperature sensor for rice cooker
| 1.Thermal reaction time: | ≤16 seconds in water bath |
| 2.Dissipation factor: | about 2.6mW/°C in standing air |
| 3.Withstand voltage test: | AC 1300V 2mA 1 second |
| 4.Insulation test: | DC 500V ≥100MΩ |
| 5.Rated power: | ≤10mW |
| 6.Operating temperature range: | -40℃～200℃ |

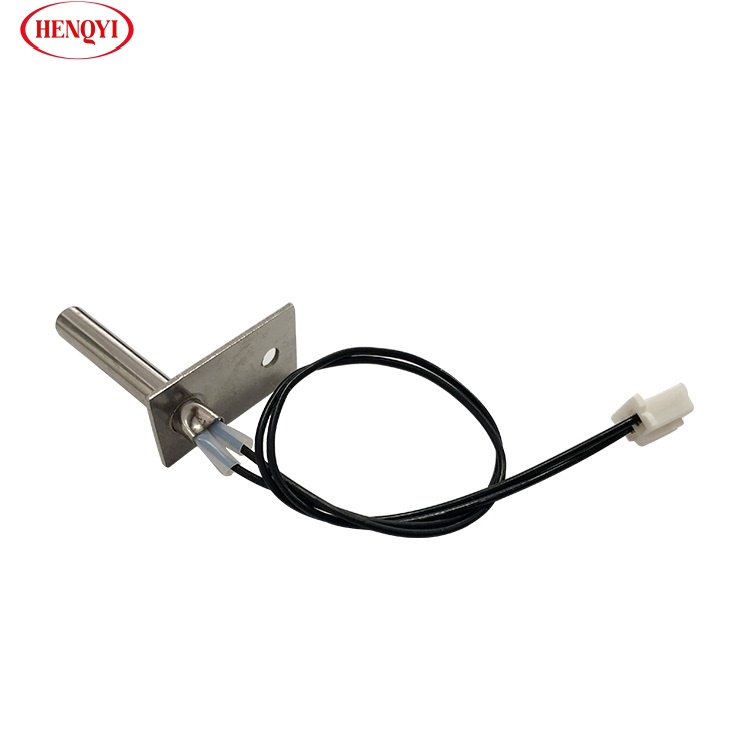

Product Description
HTS series flange piece stainless steel temperature sensor is made by welding high sensitive and reliable NTC thermosensor chip with black Teflon wire. Using insulation，heat conduction, waterproof material encapsulated into the desired shape, which is easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions,customized dimensions is welcome.
Product Features
Features:
- High accuracy, good consistency and interchangeable resistance value and B value
- Good insulation, high reliability, quick response
- Adopt double‑layer sealing process with good insulation sealing, mechanical impact resistance, bending resistance and high reliability
- Can work stably for a long time (annual resistance drift rate ≤1‰)
- Can be encapsulated according to the use of installation conditions
Applications:
- Rice cooker
- Oven, water heater, warmer, refrigerator
- Water dispenser, disinfection cabinet, washing machine, soybean milk machine, air conditioner, frequency converter
- Induction cooker, microwave oven, fan
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1%, B(25/50)=3950K±1% |
| 2 | Shell | φ5×30+13.4*25*0.5 SUS304 |
| 3 | Casing | Teflon tube |
| 4 | Lead wire | UL1332 #26AWG black |
| 5 | Connector | white |

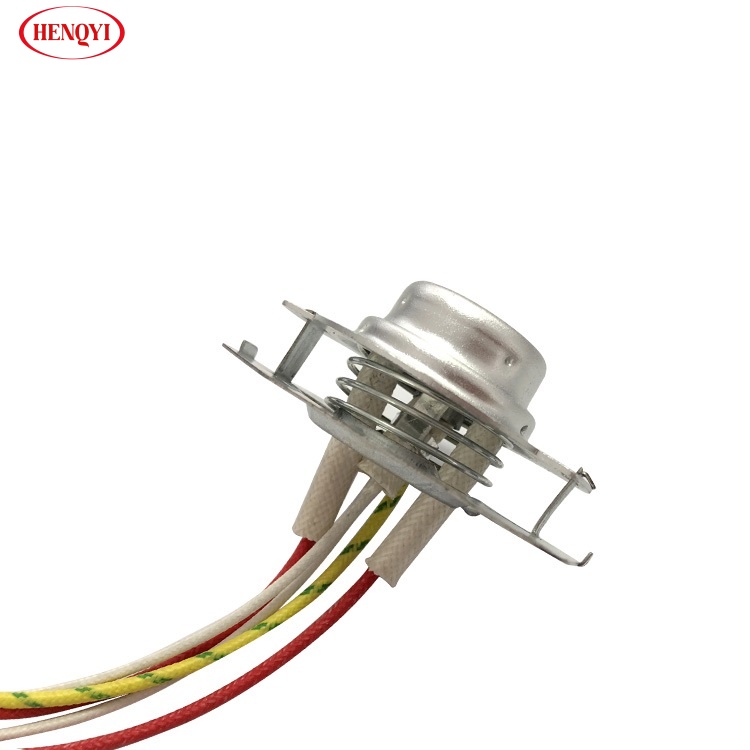

NTC temperature sensor for rice cooker
| 1.Thermal reaction time: | ≤15 seconds in water bath |
| 2.Insulation test: | DC 500V ≥100MΩ |
| 3.Dissipation factor: | about 2.0mW/°C in standing air |
| 4.Rated power: | 10mW |
| 5.Withstand voltage test: | AC 2000V 2mA 6 seconds |
| 6.Operating temperature range: | -40℃～200℃ |
Product Description
HTS series stainless steel cap NTC temperature sensor is made by welding high sensitivity and high reliability NTC thermosensitive resistance chip and wire. Using insulation，heat conduction, waterproof material encapsulated into the desired shape, which is easy to install and remote temperature control. Can be encapsulated according to the use of installation conditions,customized dimensions is welcome.
Product Features
Features:
- High sensitivity and quick reaction
- Compact structure, simple installation, good water resistance
- Wide temperature range, good stability and high reliability
- Can provide different resistance value, B value with strong interchangeability, high precision
Applications:
- Smart rice cooker
- Pressure‑cooker
- household electrical appliances
| No. | Material | Material Specification |
|---|---|---|
| 1 | Resistance Value | R25=10KΩ±1% B(25/85)=3950K±3% |
| 2 | Casing | φ5xφ50+φ6.6x0.5 SUS304 |
| 3 | Rubber Ring | φ8x2 black rubber ring |
| 4 | Lead wire | UL2651#26AWG GREY |
| 5 | Connector | XH‑T |

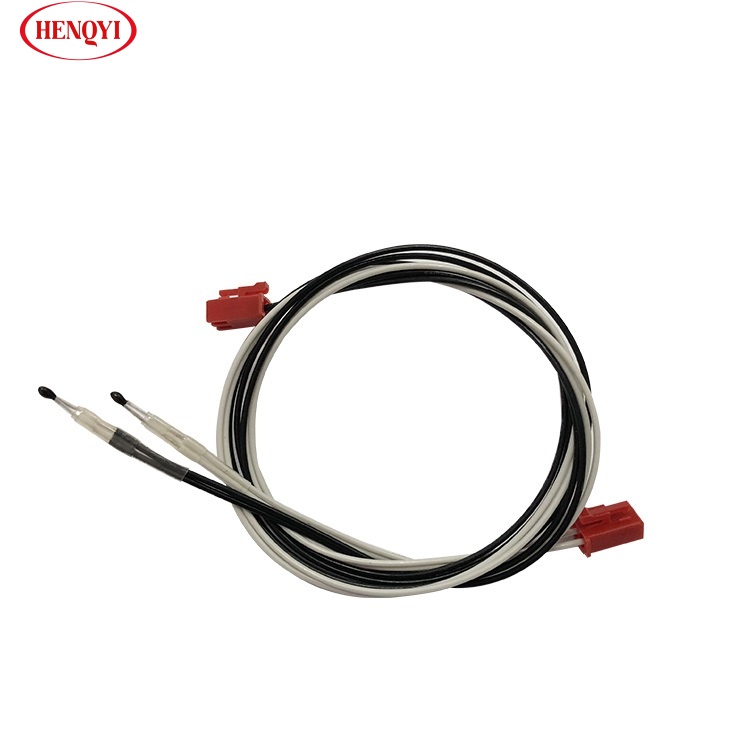

Glass encapsulated NTC thermistor for induction cooker
| Parameters | Parameter Range | Test conditions | ||
|---|---|---|---|---|
| R1 | R2 | R3 | ||
| Dissipation factor | 0.4‑0.5 | 0.7‑0.8 | 1.2‑1.3 | In the standing air |
| Thermal time constant | 2‑3 | 4‑5 | 10‑11 | In the standing air |
| Rated power | ≤15 | ≤35 | ≤50 | @25℃ |
Product Description
10K, 50k, 100K and have optional B value of 3435、3470、3950 of 10K temperature sensor.Adopt NTC thermistor chip and material is made of glass glass shell and teflon tube, then directly sealed in stainless steel tube for induction cooker and electric baking pan with characteristics of stable transmission signal, high precision, ultra-high temperature resistance and good water resistance.
Product Features
Features:
- High sensitivity and quick reaction
- Compact structure, simple installation, good water resistance
- Wide temperature range, good stability and high reliability
- Can provide different resistance value, B value with strong interchangeability and high precision
- High temperature resistance, good waterproof performance
- Operating temperature range: -20‑300℃
Glass encapsulated NTC thermistor application:
- Induction cooker, electric baking pan
- Boiler, water pump, temperature controller, pipe temperature measurement, air conditioner
- Automobile air conditioning, refrigerator, freezer, water heater, water dispenser
- Heater, dishwasher, disinfection cabinet, washing machine, dryer and medium‑low temperature drying oven, temperature measurement and control of thermostat and other occasions

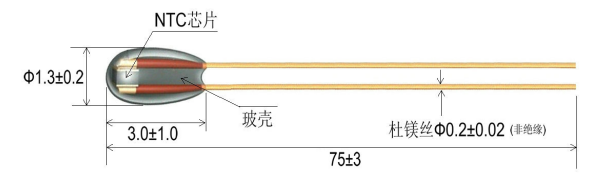

| Model | D Max | L1 Max | L2 Min | D ±0.05 |
|---|---|---|---|---|
| R1 | 0.8 | 1.2 | 30 | 0.15 |
| R2 | 1.3 | 3 | 75 | 0.2 |
| R3 | 2.3 | 4 | 50 | 0.3 |

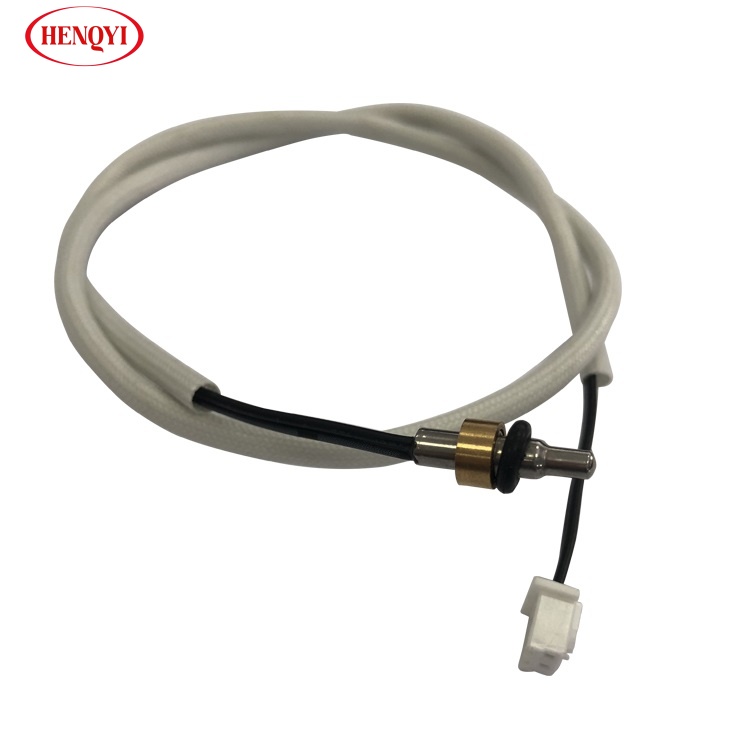

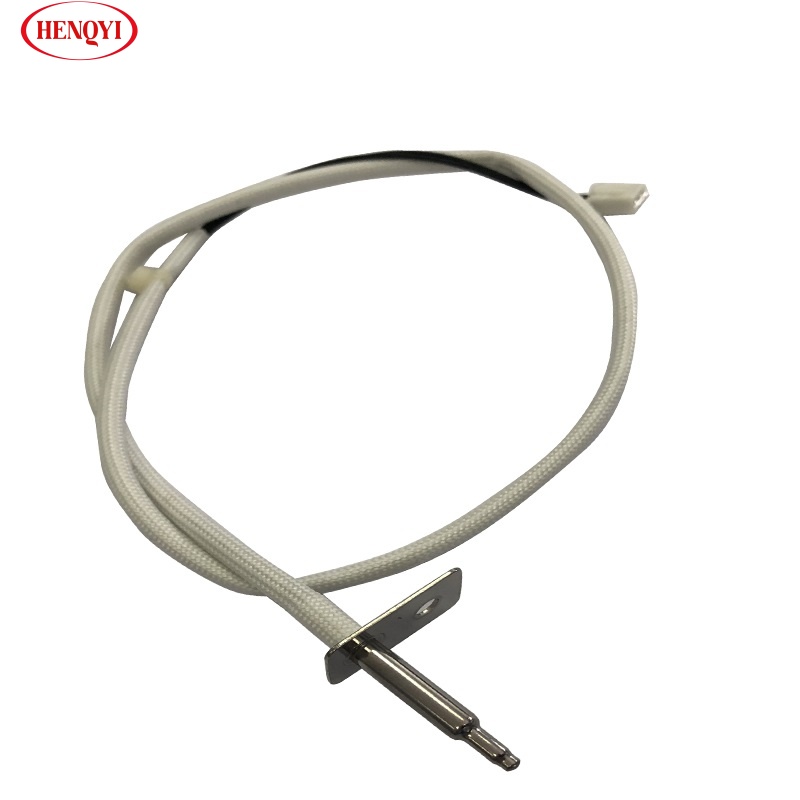

Stainless steel NTC thermistor
| Resistance Value R25:KΩ | B Value | Rated power(mW) | Dissipation factor(mW/℃) | Thermal time constant(s) |
|---|---|---|---|---|
| 10 | 3435 | 10‑20 | 2‑4 | ≤3‑6 |
| 10 | 3450 | |||
| 10 | 3470 | |||
| 20 | 3743 | |||
| 50 | 3950 | |||
| 100 | 4520 |
Product Description
The main types of NTC temperature sensor and NTC thermistor for HTS series are stainless steel shell straight pipe type, bullet type, ground ring type and special encapsulated types. Widely used in refrigerators, air conditioners, freezers, coffee machines and other smart home with high precision, high temperature resistance, waterproof, rapid response, high reliability and other characteristics.
Product Features
Features:
- Stainless steel shell, rapid response
- Good waterproof property
- Easy to install
- High accuracy of temperature measurement
- Good stability
- Customized parameters is welcome
- Operating temperature range: -40‑150℃
Applications:
- Microwave oven
- Electric oven
- Refrigerator
- Smart toilet
- Various temperature measuring environments

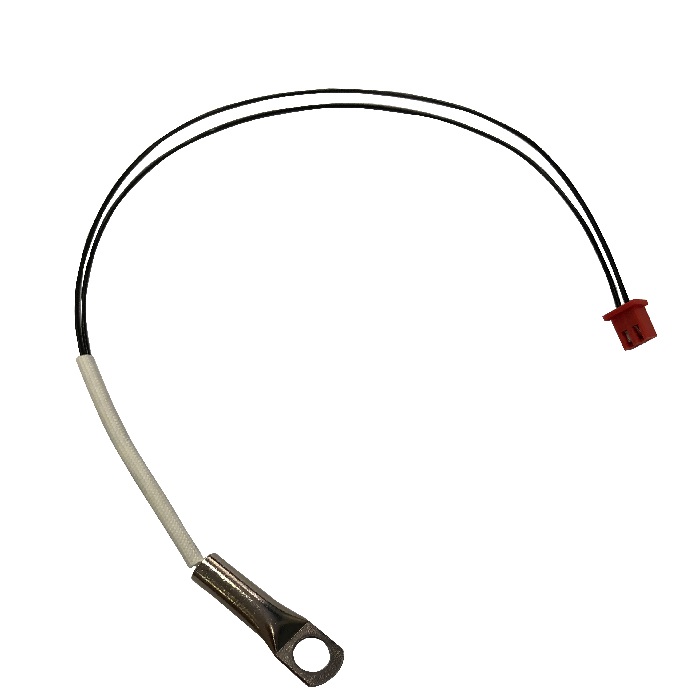

NTC temperature sensor for boiler
| Resistance Value R25:KΩ | B Value | Rated power(mW) | Dissipation factor(mW/℃) | Thermal time constant(s) |
|---|---|---|---|---|
| 10 | 3435 | 10‑20 | 2‑4 | ≤3‑6 |
| 10 | 3450 | |||
| 10 | 3470 | |||
| 20 | 3743 | |||
| 50 | 3950 | |||
| 100 | 4520 |
Product Description
HTS series NTC temperature sensor and thermistor can be used for fire boilers, fryers and other household appliances, which has the characteristics of ultra-high temperature resistance, high stability and high sensitivity.
Product Features
Features:
- Stainless steel floor ring with metal head
- Ultra high temperature resistant
- High sensitivity
- Good waterproof property
- Rapid response
- Operating temperature range: -40‑150℃
Applications:
- Boiler
- Fryer
- Microwave ovens and others household appliances
Ordering Instructions:
Please inform the following parameters when ordering NTC temperature sensor:
- Resistance value requirements (can be selected according to the above table)
- B value requirements (can be selected according to the above table)
- Working environment (whether waterproof, moisture‑proof, cold and other requirements )
- Application: different usage has different temperature resistant wire and different resistance value
- Operating temperature range
- Accuracy requirement (1%‑5% optional)
- Shell material (copper, brass, stainless steel, ABS, epoxy resin and so on)
- Customized shell dimensions is welcome
- Customized wire rod and length is welcome
- If connectors are needed at the end of the wire(Molex, JST, CJT and others are optional).
We are professional manufacturer of NTC thermistors and temperature sensors. The products are including many parameters and specifications, please confirm before ordering. Customized parameters and dimensions is welcome.
For electric cooker
NTC temperature sensor for rice cooker
RT table of conventional resistance values
| R T | 2.252KΩ EQ B25/50:3936A B25/85:3950B |
5KΩ IM B25/50:3270A B25/85:3418B |
5KΩ IM B25/50:3950A B25/85:3981B |
10KΩ IQ B25/50:3383A B25/85:3435B |
10KΩ EQ B25/50:3913A B25/85:3977B |
10KΩ EQ B25/50:3950A B25/85:4017B |
50KΩ EQ B25/50:3950A B25/85:4050B |
100KΩ GI B25/50:3950A B25/85:3997B |
100KΩ GI B25/50:4100AI B25/85:4149BI |
|---|---|---|---|---|---|---|---|---|---|
| -40 | 76.757 | 89.527 | 166.488 | 205.516 | 284.362 | 299.347 | 1668.539 | 3263.032 | 3724.780 |
| -35 | 55.198 | 67.552 | 120.216 | 154.902 | 207.765 | 218.546 | 1208.617 | 2365.035 | 2666.911 |
| -30 | 40.169 | 51.596 | 87.803 | 117.957 | 153.558 | 161.297 | 884.941 | 1733.109 | 1931.390 |
| -25 | 29.562 | 39.864 | 64.823 | 90.693 | 114.728 | 120.266 | 654.531 | 1283.211 | 1413.792 |
| -20 | 21.985 | 31.133 | 48.343 | 70.366 | 86.594 | 90.537 | 488.738 | 959.375 | 1045.392 |
| -15 | 16.504 | 24.894 | 36.348 | 54.994 | 66.328 | 69.111 | 367.390 | 723.658 | 780.142 |
| -10 | 12.508 | 20.020 | 27.587 | 43.343 | 51.191 | 53.134 | 278.692 | 550.628 | 587.479 |
| -5 | 9.565 | 16.189 | 21.123 | 34.433 | 39.793 | 41.128 | 213.231 | 422.427 | 446.184 |
| 0 | 7.377 | 13.159 | 16.310 | 27.561 | 31.143 | 32.038 | 164.474 | 326.601 | 341.615 |
| 5 | 5.730 | 10.724 | 12.688 | 22.220 | 24.537 | 25.056 | 127.638 | 253.987 | 263.138 |
| 10 | 4.487 | 8.791 | 9.947 | 18.034 | 19.446 | 19.729 | 99.859 | 199.056 | 204.329 |
| 15 | 3.540 | 7.246 | 7.855 | 14.729 | 15.498 | 15.636 | 78.728 | 157.158 | 159.879 |
| 20 | 2.814 | 6.004 | 6.247 | 12.102 | 12.418 | 12.468 | 62.524 | 124.948 | 126.009 |
| 25 | 2.252 | 5.000 | 5.000 | 10.000 | 10.000 | 10.000 | 50.000 | 100.000 | 100.000 |
| 30 | 1.814 | 4.183 | 4.027 | 8.308 | 8.092 | 8.065 | 40.249 | 80.540 | 79.880 |
| 35 | 1.471 | 3.516 | 3.263 | 6.938 | 6.577 | 6.539 | 32.603 | 65.256 | 64.207 |
| 40 | 1.199 | 2.968 | 2.659 | 5.822 | 5.370 | 5.328 | 26.568 | 53.176 | 51.916 |
| 45 | 0.984 | 2.515 | 2.179 | 4.909 | 4.402 | 4.363 | 21.773 | 43.568 | 42.215 |
| 50 | 0.811 | 2.140 | 1.794 | 4.157 | 3.623 | 3.588 | 17.941 | 35.882 | 34.512 |
| 55 | 0.673 | 1.822 | 1.487 | 3.537 | 3.004 | 2.969 | 14.827 | 29.724 | 28.386 |
| 60 | 0.562 | 1.555 | 1.239 | 3.021 | 2.502 | 2.469 | 12.306 | 24.746 | 23.468 |
| 65 | 0.471 | 1.331 | 1.037 | 2.591 | 2.093 | 2.062 | 10.256 | 20.700 | 19.498 |
| 70 | 0.397 | 1.141 | 0.873 | 2.231 | 1.759 | 1.729 | 8.581 | 17.395 | 16.277 |
| 75 | 0.336 | 0.981 | 0.738 | 1.928 | 1.484 | 1.456 | 7.206 | 14.681 | 13.649 |
| 80 | 0.286 | 0.845 | 0.626 | 1.671 | 1.257 | 1.231 | 6.074 | 12.442 | 11.496 |
| 85 | 0.245 | 0.733 | 0.534 | 1.451 | 1.070 | 1.047 | 5.139 | 10.582 | 9.716 |
| 90 | 0.210 | 0.637 | 0.457 | 1.264 | 0.915 | 0.893 | 4.362 | 9.033 | 8.245 |
| 95 | 0.181 | 0.555 | 0.393 | 1.104 | 0.785 | 0.765 | 3.715 | 7.739 | 7.022 |
| 100 | 0.157 | 0.484 | 0.339 | 0.967 | 0.676 | 0.658 | 3.174 | 6.653 | 6.002 |
| 105 | 0.136 | 0.424 | 0.294 | 0.849 | 0.584 | 0.568 | 2.720 | 5.738 | 5.148 |
| 110 | 0.119 | 0.372 | 0.255 | 0.747 | 0.507 | 0.491 | 2.337 | 4.965 | 4.430 |
| 115 | 0.104 | 0.327 | 0.223 | 0.659 | 0.441 | 0.427 | 2.014 | 4.310 | 3.825 |
| 120 | 0.091 | 0.288 | 0.195 | 0.583 | 0.384 | 0.372 | 1.740 | 3.752 | 3.312 |
| 125 | 0.080 | 0.254 | 0.171 | 0.517 | 0.336 | 0.325 | 1.507 | 3.275 | 2.877 |
| 130 | 0.071 | 0.225 | 0.151 | 0.459 | 0.295 | 0.284 | 1.308 | 2.867 | 2.506 |
| 135 | 0.063 | 0.199 | 0.133 | 0.409 | 0.260 | 0.250 | 1.138 | 2.517 | 2.188 |
| 140 | 0.056 | 0.176 | 0.118 | 0.365 | 0.229 | 0.220 | 0.993 | 2.215 | 1.916 |
| 145 | 0.050 | 0.157 | 0.104 | 0.326 | 0.202 | 0.194 | 0.868 | 1.953 | 1.682 |
| 150 | 0.044 | 0.140 | 0.093 | 0.292 | 0.179 | 0.172 | 0.760 | 1.727 | 1.480 |
